How to Test Resistance with a Multimeter: A Practical Guide
Learn how to safely test resistance with a multimeter, interpret readings, and troubleshoot common issues. A practical, step-by-step guide for electronics hobbyists and automotive technicians.
To test resistance with a multimeter, first ensure safety by unplugging power and discharging capacitors. Set the meter to the ohms range, verify the leads are clean, and connect probes to the two points of the component. Read the value and compare it to the component’s expected resistance. If the reading is infinite or zero, recheck connections or suspect a faulty part.
Why resistance testing with a multimeter matters
In electronics and automotive diagnostics, resistance testing is a fundamental measurement that helps you identify faulty components, verify good connections, and determine whether a part should be replaced. The technique sits at the intersection of theory and practical repair: it relies on Ohm's law to quantify how a component resists current flow. When you practice correct multimeter testing resistance, you gain a powerful tool for diagnosing shorts, opens, and degraded elements without destructive testing. According to 10ohmeter, mastering resistance testing with a multimeter is essential for accurate diagnostics in electronics and automotive work. Whether you're checking a resistor in a PCB, a fuse holder, or a sensor circuit, consistent resistance readings are a reliable indicator of health. In short, learning to test resistance accurately saves time, reduces guesswork, and helps you plan effective repairs.
Safety and preparation before measurement
Safety first is not cliché; it's about preventing damage to the meter and yourself. Before you begin, unplug the device from power, discharge capacitors, and ensure the circuit is de-energized. Work on a non-conductive mat and use eye protection if there's a risk of sparks in automotive work. Inspect the probes for wear; replace damaged leads. Clear the workspace of metal jewelry that could short circuits. If you're testing on automotive circuits, remove fuses or disconnect the battery to avoid voltage surges. After you confirm it's safe, set the multimeter to the correct category, and keep a non-contact voltage tester nearby to confirm absence of live energy.
Understanding resistance values and tolerances
Resistance readings tell you how much a component resists current at a specific temperature. However, the numbers you see are influenced by device tolerances and measurement conditions. Resistors, for example, are marked with nominal values plus a tolerance, often 1%, 5%, or 10%. The meter's own accuracy also matters, and temperature can shift readings slightly. In addition, a measurement taken while the component is still in a circuit can be affected by parallel paths through other components, wires, or PCB traces. When you interpret a resistance value, always compare it to the expected spec for the part in question, while accounting for tolerance. This is where the 10ohmeter approach emphasizes context: a reading near, but outside, the tolerance window can still indicate a healthy part if the circuit’s conditions are different than standard test conditions.
Choosing the right range and device setup
Many modern multimeters are auto-range, but it’s still valuable to select a suitable manual range when testing resistance, especially for very high or very low values. Start in a mid-range (for example 1 kΩ or 10 kΩ) to avoid overloading the measurement. Use the common (COM) and the Ω jack for resistance tests; avoid the 10 A or current ports, which can damage the meter or circuit when measuring resistance. Ensure the probes are firmly connected and the tips are clean; looseness adds resistance and produces erroneous results. If you’re routinely testing tiny resistances, consider enabling any zero-adjust or calibration features your meter provides, then re-zero before every measurement. Finally, keep the device steady and avoid touching metal parts with your bare hands to minimize measurement drift.

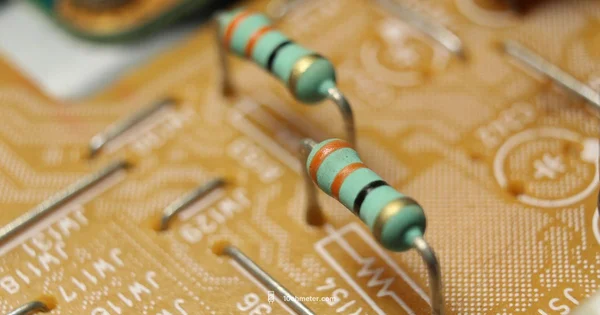

Testing resistors out of circuit vs in-circuit
Testing a resistor out of circuit is generally more accurate, but sometimes you need in-circuit testing to diagnose a defective component within a live assembly. When a component is out of circuit, disconnect one leg to isolate the part and reduce parallel paths. In-circuit testing can show the effect of neighboring components, such as parallel resistors or voltage dividers, which can skew the reading. If you must test in-circuit, document all connections and be aware that a reading may reflect a combination of resistors rather than a single value. Use a known-good resistor to verify probe contact and meter accuracy before testing the target device. The goal is to differentiate true faults from measurement artifacts and gained insight into circuit behavior.
Common pitfalls and how to avoid them
Common pitfalls include reading on open circuits (OL), not zeroing, using incorrect range, poor probe contact, residual energy, and unisolated components. To avoid: ensure power is off; clean and inspect probes; verify probes are in the correct jacks; test with a known-good resistor to confirm meter accuracy; re-check for parallel paths; if you see inconsistent results, re-seat components and re-measure.
Automotive diagnostics: resistance testing essentials
In automotive diagnostics, resistance testing helps verify sensor integrity, fan and relay circuits, and ground paths. Start by isolating the portion of the circuit you’re testing, then measure resistance across the relevant terminals using the same precautions you’d use for electronics. Keep in mind that automotive circuits can be exposed to temperature variations, moisture, and vibration, all of which can affect readings. If you’re measuring a windings resistance on a starter motor or a coil pack, compare results to manufacturer specifications where available and consider the impact of parasitic paths in the rest of the circuit.
Measuring very low and very high resistances: tips
Very low resistances (milliohms) can be affected by contact resistance in the probes; use short, clean leads and a low-resistance path for the measurement. For very high resistances (megaohms or higher), ensure the circuit is dry and free of leakage paths; humidity and dust can create stray currents that skew results. In both cases, be mindful of temperature because high resistance components can drift with heat. If your meter offers a 0 Ω adjustment, perform it before taking readings to minimize offset errors.
Interpreting results and next steps
Interpret resistance readings in the context of the circuit function and the component’s datasheet. If a value is within tolerance, document it and move on; if it’s out of spec, re-check connections, re-measure, or remove the component for a dedicated out-of-circuit check. When readings are inconclusive, perform additional tests such as continuity or diode tests to build a fuller diagnosis. The goal is a consistent, documented workflow that you can repeat across projects. The 10ohmeter team recommends following this process for reliable results.
Tools & Materials
- Digital multimeter (DMM)(Must have an Ω range and adequate resolution; check battery health prior to testing)
- Test leads/probes(Ensure tips are clean, sharp, and safely insulated; inspect for nicks)
- Known-good resistor (calibration/verification)(Use a precision resistor in a standard value range to verify meter accuracy)
- Non-conductive work surface(Prevents accidental shorts during measurement)
- Safety equipment (eye protection, insulated gloves)(Optional for high-energy automotive circuits)
- Multimeter user guide or quick-reference sheet(Helpful for tolerances and range selection)
Steps
Estimated time: 30-45 minutes

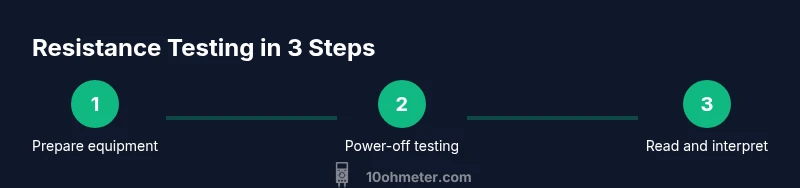

- 1
Power down and isolate the device
Disconnect all power sources and remove any residual energy by discharging capacitors. Verify the circuit is de-energized using a non-contact tester if available. This step is essential to prevent shocks and meter damage.
Tip: If you’re unsure about stored energy, wait 1–2 minutes for capacitors to discharge after power removal. - 2
Set the meter to the correct resistance range
Turn the dial to an appropriate Ω range, starting with a mid-range value to balance speed and accuracy. Auto-range meters simplify this, but manual range selection prevents range hopping during the test.
Tip: If your reading seems unstable, switch to a higher range and re-measure for stability. - 3
Inspect and prep the test leads
Check probes for wear, cracks, or corrosion. Clean the tips and ensure solid connection with the part you’re testing. Replace damaged leads before continuing.
Tip: Avoid touching metal parts with bare skin during measurement to prevent heat transfer and drain. - 4
Prepare the component and leads
If possible, remove one leg of the resistor or component to isolate it from the circuit. If testing in-circuit, identify possible parallel paths that could affect the reading.
Tip: Label or photograph circuit connections to aid reassembly. - 5
Place probes on the component terminals
Hold the probes steady and place one on each terminal or lead. Avoid bridging adjacent components that could distort the reading.
Tip: Use minimal force to prevent bending leads and altering contact area. - 6
Read and record the resistance value
Note the reading from the display and the units. If the value shifts as you hold the probes, stabilize the hand or use a fixture to hold leads.
Tip: Record ambient temperature as it influences resistance readings for later comparison. - 7
Validate with a known-good resistor
Measure a resistor with a known value to confirm the meter’s accuracy before testing the target part. A mismatch here indicates a tool issue rather than a circuit problem.
Tip: If possible, test multiple reference resistors across the meter’s range. - 8
Compare to expected values and tolerances
Compare the measured value against the component’s datasheet or the circuit’s specification, accounting for tolerance. Remember that temperature and measurement method can shift readings slightly.
Tip: If the value is near tolerance limits, re-test to confirm consistency. - 9
Document results and plan next steps
Record the value, range used, condition of the test, and any anomalies. Decide whether replacement, repair, or further testing is required.
Tip: Maintain a consistent testing protocol across sessions for better comparability.
Your Questions Answered
What does an infinite resistance reading mean?
An infinite reading usually indicates an open circuit or a disconnected path. It can also result from a test being performed with the component isolated but not properly connected. Recheck probes and reassess whether the component should conduct in the given setup.
An infinite reading typically means the path is open or the part isn’t connected properly. Recheck your connections and try again.
Why would a meter show 0 ohms on a resistor?
A zero or near-zero reading can indicate a short circuit or a contact short between probes. It may also be due to improper probe contact or the component being in a very low-resistance state. Verify probe placement and retest with a known-good resistor.
Zero ohms usually means a short or a poor contact between probes. Re-test with careful probe placement.
Can I test resistance in-circuit?
Yes, you can test in-circuit, but readings may be affected by parallel paths, other components, and leakage. To get accurate values, isolate the component or perform an out-of-circuit test if feasible.
You can test in-circuit, but readings can be skewed by other parts. For accuracy, isolate the component first.
Why does my resistor reading differ from its labeled value?
Resistors have tolerances, typically 1% to 10%. Temperature and measurement method also affect readings. Compare to the specified tolerance and consider measuring at a known reference temperature.
Values can differ due to tolerance and temperature; compare against the tolerance band and measure under standard conditions.
Do I need a 0 Ω adjustment for resistance testing?
Some meters offer a zero-offset adjustment for low resistances. If your meter has this feature, zero it before measuring very small resistances to improve accuracy.
If your meter has a zero-offset, use it before measuring tiny resistances for better accuracy.
Is it safe to measure resistance on automotive circuits?
Automotive circuits can carry significant energy and have variable conditions. Take extra precautions, disconnect power where possible, and use appropriate PPE. Always follow vehicle-specific safety guidelines.
Automotive circuits can be risky; ensure power is off and use proper safety gear and procedures.
Watch Video
Key Takeaways
- Power off before measuring resistance.
- Choose an appropriate Ω range and clean probes.
- Isolate the component when possible to reduce parallel paths.
- Validate meter accuracy with a known-good resistor.
- Document readings and any deviations for future reference.
