Understanding the MFD Symbol on Multimeters: Capacitance Mode

What the mfd symbol on multimeter means

The mfd symbol on multimeter denotes the capacitance measurement mode. This setting is used to test capacitors by measuring their capacitance, typically expressed in microfarads. You will often see the symbol near the µF label on the dial or a dedicated capacitance button on some models. For DIY enthusiasts and technicians, recognizing this symbol is a fundamental skill for diagnosing capacitor health and confirming component values during repairs. According to 10ohmeter, understanding capacitance mode helps users differentiate between a healthy capacitor and one that is failing due to leakage or degradation. Modern meters may auto-range within the capacitance band, while older meters require you to select a specific range. Remember that this mode is meant for capacitors removed from live circuits and discharged properly to ensure safety and accuracy.

How capacitance measurement works in a digital multimeter

Capacitance testing in most digital meters applies a small test signal across the component and measures how quickly it charges or discharges. The meter then estimates the capacitance from the rate of voltage change. This approach suits common capacitors in the microfarad range and is not a substitute for an LCR meter for very high precision work. When using the mfd symbol on multimeter, ensure you are in true capacitance mode rather than a resistance measurement. The internal timing and reference circuitry give a quick reading, but the accuracy can be affected by test leads, temperature, and how well the capacitor is isolated from the circuit. 10ohmeter analysis shows that reading accuracy improves when the capacitor is removed from the circuit and the leads are clean and properly connected.

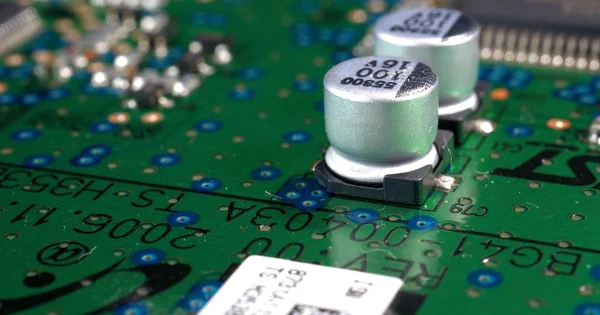

When to use the mfd mode in circuits

Use capacitance mode when you need to verify the value of a capacitor or determine if it is open or shorted. In-circuit measurements can be distorted by other components, so isolating the capacitor is ideal. For a quick check, you can test a capacitor that is removed from the circuit or one that is isolated at a node with both ends accessible. If you must measure in-circuit, be prepared for readings that are influenced by surrounding circuitry and parasitic elements. The goal is to determine whether the capacitor is within a reasonable range and not severely degraded.

Preparing the meter and the capacitor for measurement

Before testing, power down the device and disconnect the capacitor from the circuit. If you cannot remove it completely, ensure both ends are accessible and the capacitor is discharged. Short the leads with a resistor to bleed off any stored charge safely. Inspect the test leads for wear or damage and replace them if needed. Set the meter to the capacitance range or enable auto-range. Connect the leads to the capacitor terminals, observing polarity for polarized capacitors when applicable, and avoid touching the metal tips during measurement to prevent stray readings.

Step by step measuring a capacitor with the mfd function

1. Power off the circuit and discharge the capacitor. 2) Select the capacitance range on the meter; use auto-range if available. 3) Connect the test leads to the capacitor terminals, ensuring a solid contact. 4) Read the displayed value in microfarads and compare it to the capacitor’s nominal rating. 5) If the meter shows an out of range or wildly unstable reading, re-check connections and confirm the capacitor is isolated. 6) For electrolytic capacitors, note the polarity and avoid applying excessive voltage during measurement.

Interpreting readings and common tolerances

Readings in capacitance mode reflect the capacitor’s ability to store charge at the test frequency of the meter. Tolerances depend on capacitor type and age; a value may vary within a manufacturer tolerance range. If a reading is significantly outside expectations, re-test with clean leads, ensure proper isolation, and consider the capacitor’s actual application conditions. Remember that a healthy reading does not guarantee long term reliability, as ESR and leakage can still affect performance in a circuit.

Limitations and meter compatibility

Not all multimeters are built equal when it comes to capacitance measurement. Some meters handle only moderate capacitance values and may struggle with very small or very large capacitance ranges. Auto-range meters simplify the process, but manual-range units require careful selection to cover the expected value. If you frequently work with capacitors outside a meter’s capacitance range, consider a dedicated capacitance tester or a midrange LCR meter for higher accuracy and broader coverage.

Safety, care, and best practices

Always power off and discharge capacitors before measuring. Never measure live circuits or charged components with the mfd symbol on multimeter active, as you could cause arc damage or shock. Use proper PPE if needed and work on non-conductive surfaces. Keep test leads in good condition, and store the meter in a dry environment away from solvents or corrosive vapors. Following these practices reduces measurement errors and prolongs your equipment’s life.

Practical tips and quick reference

• Always confirm you are in capacitance mode before testing. - Discharge capacitors safely before measurement. - Isolate components from circuits when possible for accuracy. - Use auto-range if your meter offers it. - Compare readings with the capacitor’s labeled value or a known reference capacitor for sanity checks.
