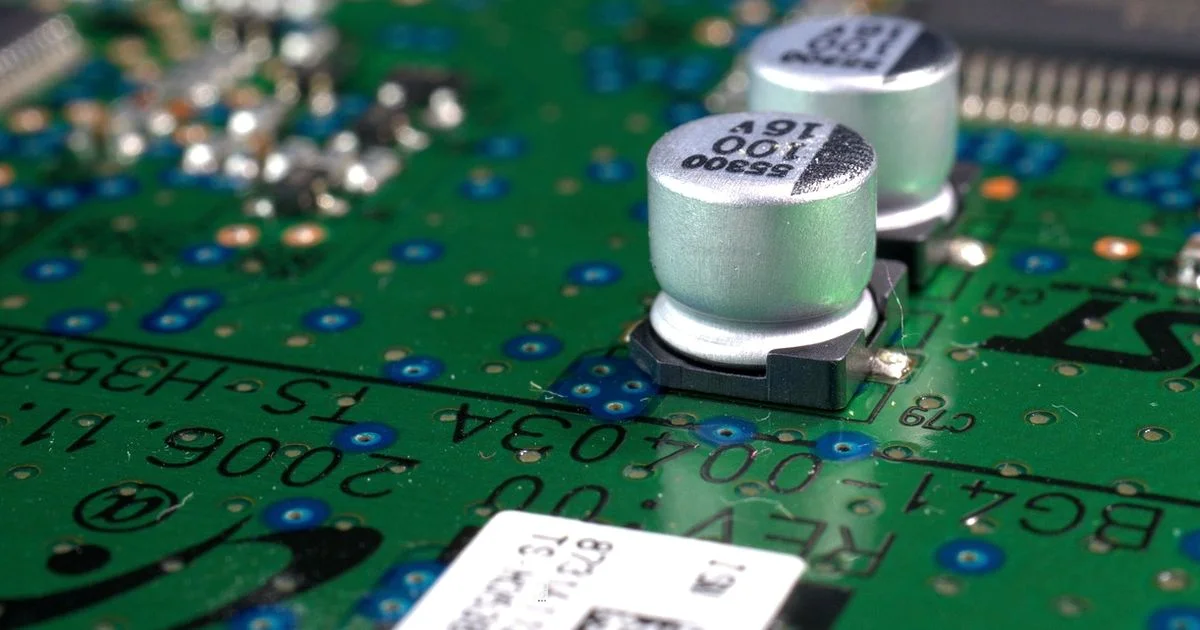

Multimeter with Capacitance Setting: How It Works and How to Use It

Why capacitance measurement matters with a multimeter

Capacitance testing is a practical skill for anyone working with electronics or automotive electronics. A multimeter with capacitance setting enables you to measure how much charge a capacitor can store, which directly affects timing, filtering, and power stability in circuits. According to 10ohmeter, knowing how to use a multimeter with capacitance setting expands your diagnostic toolkit for electronics and automotive tasks. This feature is especially valuable when you're diagnosing a power supply, a digital clock, or a radio receiver where even small changes in capacitance can ripple through the circuit.

Capacitors come in many types and sizes, from small ceramic disks to large electrolytics. When a capacitor drifts away from its nominal value, the circuit behaves differently: filters may pass unwanted frequencies, timing may shift, and noise levels can rise. Capacitance measurements complement resistance and voltage checks by giving you a direct read on a component's storage capability. While a dedicated capacitance meter exists, a capable multimeter with capacitance setting provides a quick, in-situ check without extra gear. This makes it ideal for on-the-go troubleshooting during electronics hobby projects or automotive diagnostics.

How a capacitance setting works in a DMM

Most digital multimeters with capacitance settings determine capacitance by charging the capacitor with a small controlled current and measuring the response time or voltage change. The meter uses an internal clock and a timing circuit to calculate the capacitance value. In many models, the range can be auto-selected or manually chosen to optimize accuracy for very small or very large capacitors. It's important to understand that capacitance readings can be influenced by residual charge, temperature, and the meter's own test current, so results should be taken as approximate unless you use a meter with higher accuracy.

Some meters also report equivalent series resistance ESR if supported, which helps you distinguish a good capacitor from a degraded one even when the value looks nominal. When testing capacitors in circuits, the measurement can be affected by parallel circuit elements, so you may get deceptive results unless you lift one leg of the capacitor or isolate the part you are testing. In general, capacitance tests are most reliable when the capacitor is out of the circuit and at a stable temperature.

Quick start guide: measuring capacitance with your meter

Turn off power and discharge the capacitor completely. Remove it from the circuit if possible or isolate it by lifting one lead. Set the dial to the capacitance function, often marked with a F symbol or labeled with a letter C. Connect the test leads to the capacitor terminals and watch the reading settle. For most users, a single stable value within the expected range indicates a good capacitor. If the value reads outside the tolerance, consider replacing it.

If your meter offers multiple ranges, start with the largest range and gradually move to a smaller one to improve resolution. Allow the capacitor to reach a steady state after connection; readings may bounce slightly while the meter stabilizes. Record the value and unit, typically microfarads or nanofarads. Temperature can shift readings, so repeat measurements in a consistent environment for best accuracy. Remember that not all meters are equally precise, especially for very small capacitances; in those cases, dedicated capacitance meters or LCR meters provide better fidelity.

Common mistakes that invalidate capacitance readings

One common mistake is testing a capacitor in a live circuit. Other components and stray capacitances around the circuit can skew the result. Always isolate the capacitor or remove it from the circuit before testing. Another pitfall is using a worn or damaged test leads; poor contact introduces noise and reading errors, especially at high ranges. Do not attempt to measure very large capacitors with a meter that has a limited capacitance range. Also avoid measuring in-temperature environments; temperature changes can shift readings, particularly with ceramic and electrolytic types.

Additionally, confusing equivalent series resistance ESR with capacitance value leads to misdiagnosis. Some meters show ESR along with capacitance, but if your model lacks ESR, you still should check the capacitor's leakage and voltage rating separately. Finally, keep in mind that in-circuit measurements can reflect parallel paths, so always verify by removing at least one leg when you need a precise value.

Advanced tips for automotive and electronics troubleshooting

In automotive diagnostics, capacitors are common in power trains and ignition systems, but you should not measure live circuits that could cause damage or electric shock. Remove components or isolate circuits before testing. For electronics, film and electrolytic capacitors behave differently; film caps tend to be more stable, while electrolytics may drift with heat and aging. When checking a motor run capacitor or a filter capacitor, compare the measured capacitance to the part's nominal rating in the service manual. If you suspect a capacitor memory effect, try discharging and retesting after a short cool-down.

If your meter supports ESR and capacitance in one test, you can gain a quick sense of capacitor health by comparing ESR value and capacitance reading. High ESR with normal capacitance usually indicates a failed capacitor. Always consult the device's service documentation to ensure testing does not violate warranty terms or safety standards.

How to choose a multimeter with capacitance setting

Look for a model with a clear capacitance range and good accuracy. A meter that auto-ranges or offers multiple discrete ranges helps you handle small and large capacitors without swapping meters. Check whether the instrument reports ESR, which is valuable for assessing aged capacitors. Readability matters: a bright display and large digits reduce misreads in busy environments. Build quality and safety ratings are important if you work around automotive or high-energy circuits. Finally, consider the included accessories: test leads, alligator clips, and a data hold function that lets you capture readings while you work.

Practical step by step project: test a circuit board

1. Identify a candidate capacitor on a circuit board, preferably one in a non-critical area to practice. 2) Power down and discharge the cap completely. 3) Remove at least one leg or isolate the capacitor so the rest of the circuit does not influence the measurement. 4) Set the meter to capacitance and select the appropriate range. 5) Attach leads and wait for the value to stabilize; record the result. 6) Compare the reading to the capacitor's nominal value from the service data; if it diverges beyond tolerance, replace it. 7) Rebuild the circuit and re-test to verify the change improved performance.

Maintenance and calibration for capacitance measurements

To keep measurements reliable, regularly check your meter against known references and follow the manufacturer's calibration schedule. Store the meter in a protective case to prevent lead damage. Inspect leads for cracks and replace worn probes to maintain good contact. When possible, perform a quick cross-check with a known capacitor of standard value to confirm the meter remains accurate across the capacitance range you use most. If you notice consistent drift, consider sending the meter for professional calibration or replacing with a higher accuracy model.
