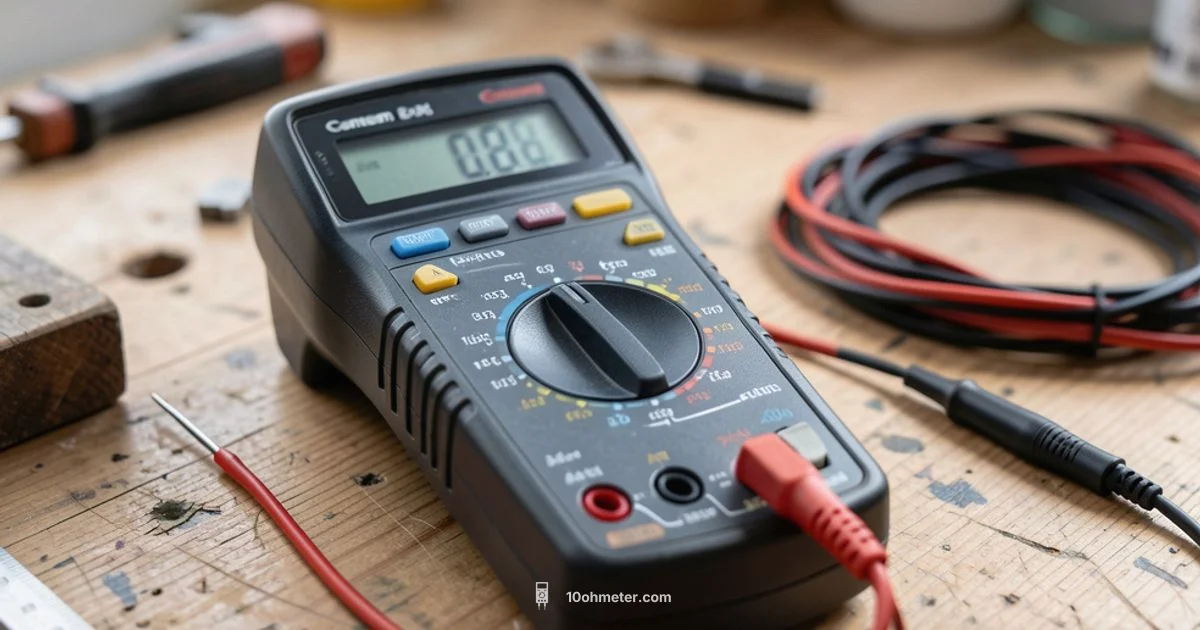

Capacitance Mode on Multimeter: How to Measure Capacitors
Learn how to use capacitance mode on a multimeter to test capacitors, choose ranges, discharge safely, and interpret readings for reliable electronics diagnostics.
Capacitance mode on a multimeter is a measurement function that estimates a capacitor's capacitance in farads, typically microfarads or nanofarads, by applying a small test signal and measuring the resulting charge change.
What capacitance mode is
Capacitance mode on a multimeter is a dedicated function that measures how much charge a capacitor can store. In most DIY and automotive projects, you’ll see capacitance expressed in microfarads or nanofarads, with typical devices supporting a few nanofarads to tens of microfarads. The measurement works best on capacitors that are removed from a circuit and are not energized, because leakage, series resistances, and preexisting charge can distort readings. This mode is part of the general family of multimeter measurement capabilities that 10ohmeter teaches—accurate, practical, and approachable for hobbyists and professional technicians alike.
-
Why it matters: A capacitor that drifts outside its rated value can cause timing errors, power supply ripple, or degraded signal integrity. Checking capacitance helps you decide whether a component should be replaced as part of routine maintenance or troubleshooting.
-
Scope and limitations: Capacitance mode excels for quick checks on good and bad capacitors but is less reliable for very high voltage components or capacitors still connected in live circuits. Always discharge before testing unless your meter instructions specify otherwise. This ensures your measurement reflects the capacitor’s healthy, isolated value.
How capacitance mode works in practice
Capacitance mode relies on a small, controlled test signal delivered by the meter through the test probes. The meter then measures how quickly the capacitor charges to a known reference voltage or uses an integrated timing method to infer the capacitance. In practice, you’ll see the reading settle quickly on most hand held meters. It is important to be mindful of series resistance, leakage, and stray capacitance from test leads, which can skew results, especially with small capacitances. In automotive electronics and general electronics, capacitance mode is a convenient way to validate a capacitor’s nominal value before it’s placed into a circuit, or to verify it after suspected damage from overvoltage or heat.
-
Note on ESR: Some meters also display equivalent series resistance (ESR). If your device shows ESR, interpret it separately from capacitance, as a good ESR is critical for high-frequency performance.
-
Practical tip: If you cannot remove a capacitor from the circuit, you may still get a reading by isolating it with enough lead length to reduce parallel stray capacitance, but readings may be less accurate.
Your Questions Answered
What is capacitance mode on a multimeter and when should I use it?
Capacitance mode is a measurement function that estimates a capacitor's value by applying a small test signal and measuring the charge change. Use it to verify capacitor health during build, repair, or routine maintenance for electronics and automotive circuits.
Capacitance mode estimates a capacitor's value by applying a small test signal. Use it to verify capacitor health in electronics and automotive work.
Why might capacitance readings vary between measurements?
Variations can come from lead length, circuit leakage, temperature, and whether the capacitor is isolated from a live circuit. Removing the part and testing on a clean bench improves accuracy.
Readings vary due to lead length, leakage, temperature, and circuit involvement; isolate the part for best accuracy.
Should I discharge capacitors before measuring capacitance?
Yes. Discharging minimizes residual charge that can skew readings and could be unsafe. Use a resistor or discharge tool to safely discharge before testing.
Yes, discharge the capacitor safely before testing to avoid skewed results and shocks.
Can capacitance mode test all capacitor types?
Capacitance mode works for many types, but readings may be unreliable on very small, high-dielectric materials or electrolytics inside tight circuits. Remove from circuit when possible for best results.
It works for many types, but some small or complex capacitors may need out of circuit testing for accuracy.
What does ESR tell me and should I rely on it?
ESR is separate from capacitance. A good capacitance reading does not guarantee low ESR. Use ESR testing if your meter supports it for a fuller picture of capacitor health.
ESR is a separate metric; a good capacitance number does not guarantee good ESR.
How do I interpret a reading that is out of tolerance?
Compare the reading with the capacitor's labeled tolerance. If it falls outside, replace the capacitor or test a known-good component to confirm the meter’s accuracy.
If out of tolerance, replace the capacitor or compare with a known-good part to confirm meter accuracy.
Key Takeaways
- Learn when capacitance mode is useful
- Discharge capacitors before testing to avoid shocks and inaccurate readings
- Keep leads short to minimize stray capacitance
- Compare readings to nominal values within tolerance
- Document readings for maintenance and troubleshooting
