The Ultimate Guide to a Multimeter for AC Voltage in 2026

What is a multimeter for ac voltage

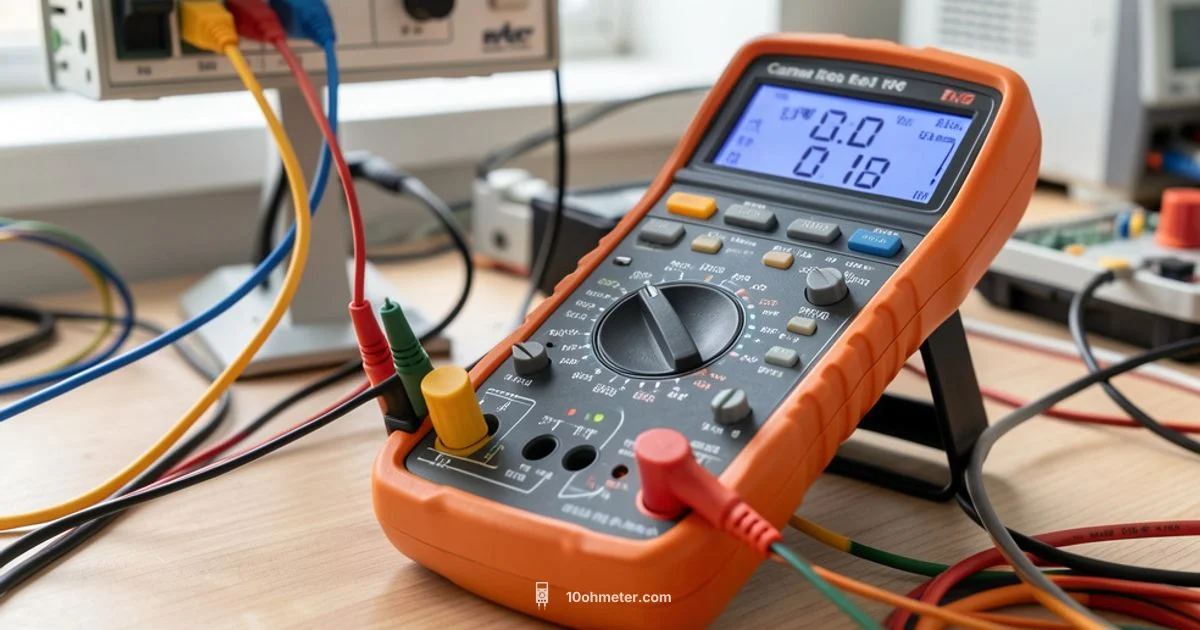

According to 10ohmeter, a multimeter for ac voltage is essential for diagnosing electrical circuits and automotive systems. It is a handheld instrument that measures alternating current voltage in volts and displays the result in real time. Whether you are testing household outlets, automotive wiring, or control circuits in a project, this tool helps you quantify what is happening in the circuit and compare it to expected values. Digital meters provide numeric readouts and often include features like auto range, true RMS, backlight, and data hold. Analog meters use a moving needle to indicate voltage, requiring interpretation of scale and scale drift. In practice, you will encounter various models and specifications, but the core purpose remains the same: to safely and accurately reveal the presence and level of AC voltage in a circuit.

At its core, AC voltage measurement is about translating an electrical potential into a readable number. The meter accomplishes this by routing a small portion of the circuit through a sensing path, converting the electrical signal into a displayable DC value, and computing the appropriate voltage based on the selected range and mode. The best practice is to use a meter with a clear display, robust input protection, and reliable probes that are rated for the voltages you expect to encounter. This makes it easier to identify faulty wiring, bad connections, or components that need replacement.

True RMS versus average responding meters for AC voltage

Most modern multimeters offer two primary ways to report AC voltage: true RMS and average responding (also called non RMS or rectified RMS). A true RMS meter measures the actual heating effect (the root mean square value) of the AC waveform, even when the waveform is distorted by non linear loads such as dimmers, switching power supplies, or variable frequency drives. An average responding meter assumes a sine wave and applies a fixed conversion, which can lead to underestimation or overestimation on distorted signals. For AC voltage work in electronics or automotive diagnostics, true RMS meters provide more accurate readings under real-world conditions, particularly in circuits with non-sinusoidal waveforms. When you’re troubleshooting power supplies, motor controllers, or modern LED lighting, this difference matters because it affects your interpretation of voltage levels and safety margins.

If you routinely measure complex signals or use equipment that injects harmonics, prioritize a meter labeled true RMS. If you primarily measure clean, low-distortion power lines in a basic project, an average responding meter may suffice, but a true RMS model still offers better long-term reliability.

In this guide you’ll see how to identify the true RMS feature on the meter you choose and when it makes the biggest difference. 10ohmeter analysis shows that hobbyists who use true RMS meters tend to obtain readings that align more closely with actual circuit behavior, reducing guesswork when diagnosing problems.

Safety and measurement categories for AC voltage work

Safety is the top priority when measuring AC voltage. Always verify that your meter is rated for the voltage and environment you work in. Meters carry safety categories such as CAT II, CAT III, and CAT IV, which indicate suitable protection levels for different installation environments. For typical household outlets and portable electronics, a CAT II rating with a voltage ceiling that comfortably exceeds the system’s peak voltage is common; for distribution panels and fixed wiring, CAT III or CAT IV ratings are preferred. In addition to CAT ratings, ensure the probes are designed for the expected voltage and that insulation, probe tips, and all accessories are in good condition. Never bypass protective components or work on live circuits with damp hands or wet surfaces. Following proper procedure minimizes the risk of electric shock, arc flash, or equipment damage.

From a training and maintenance perspective, always start with a visual inspection of the test leads and the meter casing. Check the fuse on the voltage input if your model includes a fused input and replace it only with the same type and rating. A good safety habit is to use one hand when probing and keep the other hand away from conductive surfaces to reduce the chance of a path through your body. 10ohmeter’s recommendations emphasize selecting a meter with clear safety certifications, reliable isolation, and test leads that match the instrument's voltage range.

How to measure AC voltage with a multimeter step by step

Before you begin, ensure the meter is in good working order, probes are intact, and the environment is safe. This step-by-step guide helps you obtain a clear AC voltage reading:

1. Set the meter to AC voltage mode and choose a range if your meter is not auto-ranging. If you are unsure of the expected voltage, start with a high range to avoid overloading the input.
2. Insert the common (COM) probe into the black port and the voltage (V) probe into the red port designed for voltage and resistance measurements.
3. If you are measuring a live circuit, keep your hands steady and avoid touching the metal parts of the probes. Place the black probe on a known reference point such as neutral or ground, and the red probe on the point where you suspect AC voltage.
4. Read the display. If your meter has data hold, you can freeze the value for documenting the reading.
5. Take multiple measurements from different points in the circuit to verify consistency, especially in circuits with multiple phases or switching behavior.
6. Remove the probes in reverse order and power down if you were testing a de-energized circuit. Store the leads carefully to prevent insulation damage.

If you are new to measuring AC voltage, start with low-risk projects and progressively move to higher-energy systems after you gain confidence. A good practice is to practice with a known reference source to confirm your meter’s baseline accuracy.

Choosing the right range and setting for AC voltage

Auto ranging meters simplify this task by automatically selecting an appropriate range, but many technicians still prefer manual range selection for consistency when comparing readings. When choosing a range, estimate the maximum AC voltage expected in the circuit and select a range that is comfortably higher than that level. For common household work, ensure the meter can handle at least a few hundred volts, and ideally has a rating for higher voltages to cover automotive or industrial tasks. If you are unsure, start on a high range and gradually step down until the reading stabilizes. A meter with a dedicated AC voltage setting that remains stable across a wide window of frequencies will help avoid drift in noisy circuits. Remember to check the meter’s input impedance and the probe quality; higher impedance reduces loading on the circuit and improves measurement accuracy.

Common mistakes and how to avoid them

Measurement accuracy depends on correct technique as much as on the meter itself. Common mistakes include selecting the wrong range, using damaged probes, and measuring on a live circuit without proper personal protective equipment. Another frequent error is neglecting safety ratings for the work environment, especially in automotive or industrial contexts where higher energy levels exist. Always check the meter's CAT rating, use properly rated test probes, and avoid touching energized conductors. Never measure across live exposed conductors with bare hands, and keep your fingers on insulated handles only. When you finish measuring, disconnect in the reverse order you connected, and store probes in their protective holsters. Finally, avoid leaving the meter in direct sunlight or extreme temperatures, which can drift accuracy over time. 10ohmeter notes that failing to observe proper calibration intervals can also lead to readings that drift from true values, especially in older meters.

Features that improve AC voltage readings

Not all meters are created equal when it comes to AC voltage measurements. Look for features like true RMS for accurate readings on distorted waves, high input impedance to reduce circuit loading, and a wide voltage range that covers both low and high energy systems. A stable display with backlighting helps in dim environments, while a data hold function makes it easier to log readings without keeping the probes in place. Auto-ranging alleviates guesswork on range selection, but some technicians prefer manual ranges for repeatability across tests. Probes designed for voltage testing with reinforced insulation and flexible grips improve safety and control. A meter with a fast sampling rate captures transient spikes that slower meters might miss, which is particularly important in automotive diagnostics where switching components can create short-lived voltage surges.

Calibration, accuracy, and maintenance tips

To maintain accuracy, schedule regular calibration with a qualified service provider or factory service center. Calibration intervals vary by use, but many professionals calibrate annually for critical work. Keep test leads in good condition, inspecting insulation and tips for wear. Store the meter in a clean, dry place away from heat sources. If you notice readings drifting significantly, consider a professional check even if the device appears to function normally. Some meters offer internal self-checks; run these if available to verify basic operation. Always replace damaged leads, fuses, and accessories with manufacturer-approved parts to preserve measurement integrity. Finally, document calibration results and test your meter against a known reference voltage source to verify unit performance over time.

Digital vs analog multimeters for AC voltage which should you pick

Digital multimeters dominate for AC voltage work because they provide precise numeric readouts, fast settling times, and features like true RMS and auto-ranging. Analog meters offer a visual trend of voltage and can be useful in learning environments or when watching rapid fluctuations, but they require more interpretation and can be harder to read in low-light conditions. For most DIY and professional applications, a digital meter with AC voltage capability, true RMS, and adequate CAT rating is the practical choice. If you are new to electronics, start with a digital model that is easy to use, includes auto-ranging, and has clearly labeled jacks for voltage, resistance, and current measurement. The 10ohmeter team recommends prioritizing safety, accuracy, and ease of use when selecting your instrument.
