How to Use a Multimeter for AC Current
Learn how to safely measure AC current with a multimeter, including true RMS considerations, clamp-meter methods, inline shunt options, and essential safety tips for electronics and automotive work.
By the end of this guide, you will safely measure AC current with a multimeter using either a clamp meter or a shunt setup. You’ll learn the right equipment, how to prepare the circuit, and how to read true RMS values for accurate results. We’ll compare direct inline measurements with clamp-based methods and explain when each is appropriate and safe.
Why AC current measurement matters for DIY and automotive work
AC current is a critical parameter in many circuits, from home appliances to automotive sensors. Measuring it with a multimeter lets you verify load conditions, diagnose faults, and ensure the circuit operates within safe limits. According to 10ohmeter, understanding how to measure AC current responsibly reduces risk and improves diagnostic accuracy. In practice, you’ll often need to switch from a voltage tester to an amperage measurement to see how much current flows through a wire under load. This knowledge helps you size fuses, validate wiring, and confirm that a device draws expected current. This section explains why these measurements matter and how to approach them, including what you can safely measure with a standard handheld multimeter and when you should consider a clamp meter or external shunt.
Safety first: essential precautions before you start
Safety is non-negotiable when measuring AC current. Always work with power off when possible, and use insulated tools rated for the voltage and current in your system. Keep your hands dry, wear safety goggles, and work on a non-conductive surface. If you must test live circuits, use protective gear and a meter with appropriate CAT ratings. Never attempt to measure current by probing a live conductor directly with a probe—current is conducted; you can be shocked or create a short. Establish a clear physical and electrical boundary between you and the circuit, and verify that your equipment is in good condition (no damaged leads, frayed insulation, or blown fuses). This foundation is critical for accurate measurements and your safety.
Core concepts: AC current, RMS, and meter limitations
AC current is not a constant number; it varies with the waveform and load. Most meters report RMS (root-mean-square) values, which approximate the heating effect of the current. The key distinction is peak versus RMS, especially when non-sinusoidal waveforms are present. If you’re new to the topic, search how to use multimeter for ac current to understand common meter behaviors and limitations. True RMS meters provide more accurate readings for complex waveforms, while non-true RMS meters may under- or overreport in the presence of harmonics. This section builds the conceptual foundation for selecting the right tool and interpreting results correctly.
Measuring AC current with a standard multimeter: what works and what doesn't
A typical handheld multimeter excels at voltage, resistance, and sometimes current in DC mode, but many models cannot measure AC current directly in a safe, accurate way. Direct inline amps measurement with a standard meter is rarely recommended because it requires breaking the circuit and exposing the meter to potentially dangerous currents. For AC current, the preferred options are a true RMS clamp meter or an inline shunt designed for current measurement. Clamp meters non-invasively measure current by magnetic coupling around a single conductor, while inline shunts place a resistor in series and measure the voltage drop. If your goal is to minimize risk while obtaining reliable readings, use a clamp meter whenever possible and reserve inline methods for controlled laboratory setups.
Using a clamp meter for AC current: the safer, practical method
A current clamp meter encircles a single conductor and senses the magnetic field generated by the current. This non-contact approach avoids live exposure of the meter’s internal circuitry. To use it, select AC current mode, ensure the conductor passes cleanly through the jaw (no bending wires through multiple conductors), and close the jaw before reading. True RMS capability yields accurate results for non-sinusoidal loads, common in motor drives and switching supplies. When measuring, clamp meters are particularly advantageous in automotive diagnostics, power supplies, and household appliances where wires are often bundled or hard to access in series. Always verify the conductor rating and ensure the meter’s jaw can accommodate the wire gauge.
Inline current measurement using a shunt resistor (advanced technique)
Inline current measurement requires inserting a calibrated low-value resistor (the shunt) into the circuit path and measuring the small voltage drop across it with your multimeter. This method is sensitive and can perturb the circuit if the shunt is not correctly specified. Use a shunt rated for the expected current with low resistance to minimize voltage drop. Connect the meter leads across the shunt, in series with the load, and account for any resistor tolerance in your calculations. The inline approach is useful when a clamp meter isn’t available or when precise, traceable measurements are required in a controlled setup. Exercise extreme caution to avoid short circuits and always disconnect power before modifying the circuit.
Reading and interpreting readings: true RMS, scale, and conversions
Reading AC current involves understanding the meter’s scale, units, and the waveform. With a true RMS clamp or inline shunt, current values typically appear in amperes (A) or milliamperes (mA). If your waveform contains harmonics or non-sinusoidal content, true RMS readings are essential for accuracy. In some meters, the display auto-switches between ranges; if not, you may need to select the auto-range function or a higher current range to avoid overload. When comparing readings from a clamp versus an inline shunt, remember that calibration and insertion losses may cause slight discrepancies. Cross-check with a known load or a different method when precision matters.
Troubleshooting common issues and avoiding pitfalls
Several common issues can distort AC current readings. Loose connections, poor contact at the clamp jaw, or measuring through a bundle of wires can mask the actual current. Magnetic interference from nearby power sources or motors can skew results; move to a clean test point if possible. Ensure your test leads are in good condition, fuses are intact, and the meter is configured for AC current with true RMS if possible. If readings seem unstable, verify that you’re measuring a single conductor and that the waveform remains within the meter’s specified frequency range. Finally, never omit safety steps—higher currents and voltages demand proper PPE and correct equipment with appropriate CAT ratings.
Next steps: selecting equipment and safe storage
Choosing the right tool depends on your tasks. For general electronics work and automotive diagnostics, a true RMS clamp meter is the safest and most versatile option. If you occasionally need inline measurements in a lab, a properly rated shunt plus a high-precision DMM can work, but you must follow strict setup procedures and ensure all components are rated for the circuit. When not in use, store meters and leads in a dry, dust-free case, away from conductive surfaces. Regularly inspect probes for cracks and replace damaged parts promptly to maintain measurement integrity. This final section helps you plan your tool kit and ensure long-term reliability.
Tools & Materials
- Digital multimeter (true RMS preferred)(Set to AC current mode if available; otherwise use a compatible configuration.)
- Current clamp meter (AC)(Best for noninvasive measurements on single conductors.)
- Test leads with alligator clips(Ensure high-quality insulation and current rating.)
- Safety gloves and eye protection(Use ANSI/EN safety standards as a baseline.)
- Current shunt resistor (low value)(Only if inline measurement is planned; ensure proper rating and calibration.)
Steps
Estimated time: Total time: 25-40 minutes
- 1
Prepare safety and workspace
Power down the circuit when possible and isolate the test area. Verify the equipment is in good condition and that you have a dry, non-conductive surface. Gather all tools before you begin to minimize repeated openings of the circuit.
Tip: Inspect fuses and leads for cracks or burns before connecting. - 2
Choose measurement method
Decide between a clamp meter for noninvasive, safer measurement, or inline shunt for high-precision needs. If you’re unsure, start with the clamp method and only switch to inline if a clamp doesn’t meet your requirements.
Tip: Clamps are safer for live circuits; inline methods require careful resistor selection. - 3
Set your meter to AC current mode
If your meter has separate AC current ranges, select the appropriate one for the expected current. Enable true RMS if available to improve accuracy on non-sinusoidal loads.
Tip: Avoid auto-range if you expect high current to prevent range switching delays. - 4
Prepare the conductor for clamping
Isolate a single conductor if possible and avoid clamping around bundles. Ensure the conductor is accessible for the clamp jaw and that there is no trapped metal or insulation between the jaw and the wire.
Tip: If using a clamp, only clamp one wire at a time. - 5

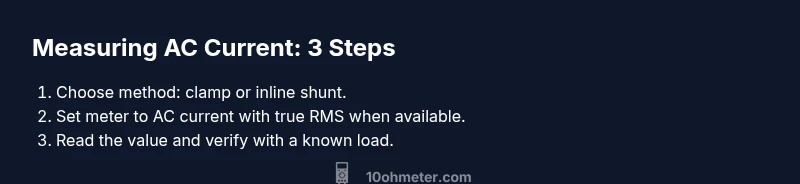

Take the current measurement with clamp shes
For a clamp, place the jaw around the conductor and close it fully. Read the current value on the display and note the unit (A or mA).
Tip: Let the reading stabilize for a few seconds before recording. - 6
Inline measurement setup (if needed)
If inline measurement is required, insert the low-value shunt in series with the load and connect the meter across the shunt. Ensure power is off during setup and verify proper orientation.
Tip: Calibrate for shunt resistance and account for tolerance in calculations. - 7
Verify readings with a known load
To confirm accuracy, measure a known current load (e.g., a rated resistor or a controlled heater) and compare to expected values. This helps catch calibration or connection errors.
Tip: Use a load with a stable, well-defined current. - 8
Power down and store equipment
Turn off equipment, remove clamps, disconnect leads, and store everything in a dry case. Document the reading and the circuit details for future reference.
Tip: Label measurements to aid future troubleshooting.
Your Questions Answered
Can I measure AC current directly with a regular multimeter?
Most handheld multimeters cannot measure AC current directly. Use a clamp meter or an inline shunt designed for current measurements to obtain safer, accurate results.
Most meters can't measure AC current directly; use a clamp or inline shunt for safety.
What is the difference between AC current and DC current on a multimeter?
AC current alternates direction, while DC current flows in one direction. Many meters distinguish AC current with sinusoidal waveform detection; some meters can measure DC current directly but may require different input ranges.
AC current changes direction; DC stays in one direction. Use the right mode and ranges on your meter.
Is it safe to measure AC current in live circuits?
Measuring live currents increases risk. Use a clamp meter or inline shunt with proper PPE and ensure the circuit is within the meter's CAT rating. Whenever possible, de-energize the circuit first.
Live measurements are risky; prefer clamp meters and proper PPE, and de-energize when possible.
Do I need true RMS to measure AC current accurately?
True RMS meters provide accurate readings under non-sinusoidal loads. If your circuit has harmonics or pulsed loads, true RMS is recommended.
True RMS gives better accuracy for complex waveforms.
When should I use a clamp meter instead of an inline shunt?
Use a clamp meter for noninvasive, quick, and safer measurements on single conductors. Inline shunts are useful when you need traceable current values and have controlled test setups.
Clamp meters are safer; inline shunts are for controlled setups needing precise values.
What wire size can a clamp meter handle?
Clamp jaw size matters. Always clamp around a single conductor that fits within the jaw’s opening, and check the meter’s specified wire gauge range.
Make sure the wire fits the clamp jaw; don’t force oversized wires.
Watch Video
Key Takeaways
- Use true RMS meters for accurate AC current on non-sinusoidal loads
- Clamp meters are safer and easier for live circuits
- Inline measurements require careful shunt selection and circuit access
- Always verify safety, fuses, and lead integrity before testing
- Choose equipment based on circuit voltage, current, and accessibility
