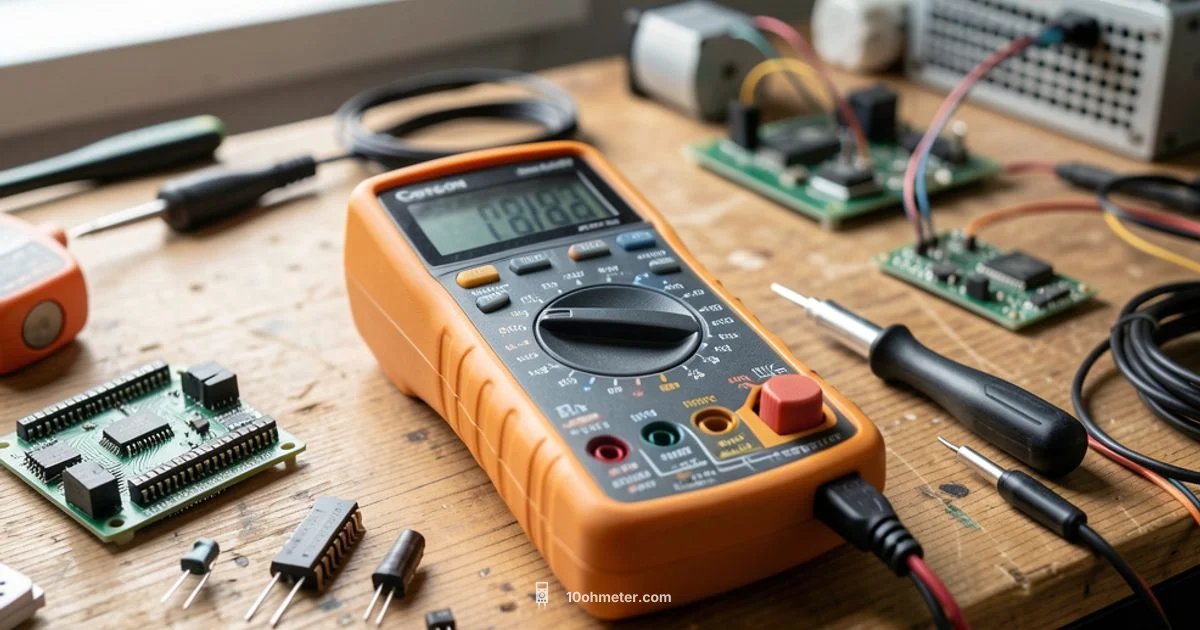

Is Multimeter Analog or Digital? A Practical Guide

What is a multimeter and where the analog versus digital question arises

A multimeter is a versatile tool for measuring electrical quantities such as voltage, current, resistance, and continuity. The question of analog vs digital comes from the display and internal electronics: analog meters use a moving-coil needle that responds to input current and shows the result on a physical scale. Digital meters convert the input signal with an analog-to-digital converter and present readings as numeric digits on a screen. The history is clear: early meters relied on dials and needles, while later designs adopted digital displays for higher readability and more features. Even today, many hobbyists prefer analog meters for studying waveforms or for quick, qualitative trend observation, while digital meters dominate the market for most everyday tasks. Practical takeaway: identify the display type first, then explore the meter’s features to match your task.

How analog and digital meters differ in design

The core difference lies in the measurement chain. Analog meters use a moving coil, a delicate mechanism linked to the input signal and calibrated scales. Reading the needle requires aligning your eye with the scale, which can be quick for some tasks but challenging for small values or noisy signals. Digital meters rely on sensors, an analog-to-digital converter, and a microcontroller to translate signals into numeric values displayed on an LCD or LED screen. This architecture enables higher resolution, auto ranging, data hold, and sometimes data logging. Many modern meters combine both ideas under a digital umbrella, but true analog meters still exist for specific use cases where a visual trend is valuable. Understanding these design differences helps you select a meter that suits your workflow and reduces misinterpretation of readings.

Display types and what they tell you

Display type matters for readability and interpretation. An analog meter provides a continuous, moving-needle display that smoothly visualizes changes, which can be helpful when monitoring changes over time. A digital meter shows exact numeric values, often with unit indicators and decimal places, making precise readings straightforward. Some digi­tal meters include bar-graph displays that offer a hybrid feel. It is important to note that the display type does not automatically indicate accuracy or reliability; it primarily reflects how the data is presented. For technicians, the choice often comes down to comfort with reading scales versus numerical certainty in real time, especially in dim lighting or while multitasking on a bench.

Performance characteristics that matter

Beyond display, consider accuracy specifications, resolution, and input impedance. Digital meters typically offer higher resolution, wider feature sets, and auto-ranging, which reduce guesswork. Analog meters can provide intuitive trend visibility and may operate without power for some basic measurements, depending on the design. When working with delicate circuits, true RMS capability, diode tests, capacitance measurements, and continuity features also influence value. Neither type automatically wins on every metric; the best choice depends on the task, the user’s experience, and the environment. A practical approach is to map your typical measurements to the meter’s strengths and avoid overreliance on any single feature.

Practical guidance: when to choose analog versus digital

For most electronics and automotive tasks, digital meters are the default choice due to readability, flexibility, and advanced functions. Auto ranging, higher resolution, and crisp numeric data support faster troubleshooting and documentation. Analog meters remain valuable for lab demonstrations, educational settings, or situations where a quick qualitative readout is sufficient and battery life is critical. If your work involves watching fast-changing signals or you need a visual cue for gradual drift, an analog meter can be a helpful complement to a digital instrument. The right approach is to own both types when feasible and use each for its strengths to improve accuracy and efficiency on the bench.

Common myths and clarifications

A common myth is that digital meters are inherently more accurate than analog ones. In reality, accuracy depends on the device’s tolerance, calibration, and intended use. Likewise, the notion that analog meters cannot handle precise measurements is inaccurate; many analog meters are designed for quick checks with acceptable precision in the field. Another misconception is that more features automatically mean better results; features are only beneficial if they match your needs and your measurement environment.

How to test or verify your meter type

Identify the display first. If you see a needle and a scale, you are dealing with an analog meter; if you see digits, you are looking at a digital meter. Check the user manual for details on range selection, auto ranging, and the presence of true RMS or capacitance measurement modes. For accuracy assurance, compare a known reference voltage or a calibrated resistor with the meter in its most common range, and verify that results align with expectations within the stated tolerance. Regular calibration checks and battery health assessment help maintain reliability across both types.

Authority sources and further reading

For deeper details on meter design and measurement principles, consult respected resources such as the National Institute of Standards and Technology and major publications that discuss measurement accuracy and instrument design. These sources provide foundational context for how meters are built and how different display types influence user interaction and measurement interpretation. Examples include official standards and encyclopedic explanations from well-known authorities.
