How to test throttle position sensor with multimeter

What a throttle position sensor does and why you might test it with a multimeter

The throttle position sensor (TPS) is a small potentiometer mounted on the throttle body that tells the engine control unit how far the throttle plate is open. Understanding its behavior helps diagnose idle shake, hesitation, misfires, or abnormal fuel trim. Testing the TPS with a multimeter provides a direct, non-invasive check of the sensor’s electrical output, independent of the ECU’s readiness. According to 10ohmeter, a TPS typically changes smoothly as the throttle moves; erratic readings often indicate a mechanical binding, dirty contacts, or worn wiper contacts. This is the first step in a systematic diagnostic process and can save time when chasing intermittent driving issues. In many vehicles, you’ll observe a voltage signal that changes as you move from idle to wide-open throttle. Always consult the service manual for your specific vehicle because sensor wiring, reference voltage, and ground pins can vary by model.

If you’re learning how to test throttle position sensor with multimeter, this approach gives you a baseline measurement you can compare against the factory spec.

Safety and preparation before you test

Electrical testing in a vehicle is safe when you follow proper precautions. Wear eye protection, disconnect power when wiring changes are needed, and keep your hands away from moving parts. Before you start, ensure the engine is cool, the battery is disconnected during wiring inspection, and you have a clear plan for how you’ll access the TPS pins. A systematic approach reduces the risk of short circuits or accidental damage. If you’re unsure, stop and consult your service manual. The goal of this section is not to replace a professional diagnostic but to give you a safe, repeatable method to verify sensor behavior using a multimeter. With the TPS test in mind, you’ll be able to tell whether the issue lies with the sensor, the wiring, or the ECU.

Tools and wiring basics for testing with a multimeter

To test the TPS with a multimeter, you’ll need a digital multimeter capable of accurate DC voltage readings and possibly resistance. You’ll also benefit from backprobe pins or thin, insulated probes to access the TPS wires without damaging connectors. Have a service manual on hand to confirm the reference voltage, ground pin, and signal wire color for your exact model. Keep spare fuses accessible and avoid connecting the meter across live circuits without following the correct sequence. This section covers how to prepare your workspace, identify the correct pins, and understand the wiring scheme used by most TPS sensors so your measurements are reliable when you perform how to test throttle position sensor with multimeter steps.

Remember: accuracy matters, so keep your probes steady and minimize resistance in the test leads.

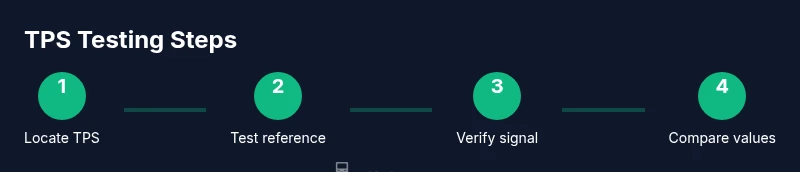

Locating the TPS and identifying its pins

Locating the throttle position sensor involves removing the throttle body cover or throttle body itself in some vehicles. Identify the three wires typically associated with a TPS: reference voltage (often 5V), ground, and signal. You’ll find the service manual detailing the pinout and wire colors for your vehicle. Before you touch any pins, inspect the connector for loose terminals, corrosion, or cracked seals. Mark the reference and signal pins so you don’t mix them up during backprobing. In many systems, you’ll test the reference voltage with ignition ON, engine OFF, and then test the signal voltage with the engine running. This distinction is important when you perform how to test throttle position sensor with multimeter steps.

Understanding readings and what they mean during the TPS test

A healthy TPS should produce a smooth voltage change as the throttle moves. When you test throttle position sensor with multimeter, look for a steady increase in signal voltage as you press the accelerator and a consistent drop when you release. If readings jump, stall, or show flat spots, there may be internal wear, a dirty contact, or a wiring fault. Always compare your measurements to the vehicle’s service manual reference values. Note that some manufacturers use a resistance test across the TPS rather than a direct voltage read, so follow the exact procedure in your manual. The goal is to establish a reproducible baseline that confirms the TPS is functioning within its expected range under both idle and WOT (wide-open throttle) conditions.

If you see irregularities, you’ll want to re-check the wiring harness for bent pins, loose connections, or damaged insulation. A simple continuity test with the engine off can help you detect open circuits that would skew the measurements.

Interpreting results and common faults

Interpreting the TPS test results requires consideration of the vehicle’s symptoms and the sensor’s behavior across throttle positions. A TPS that lags behind throttle input, or shows a non-linear voltage curve, can cause hesitation, surging, or rough idle. If the sensor’s readings are consistent at idle but jump when you move the throttle, the fault could be mechanical wear in the throttle body or a dirty sensor wiper. Wiring faults, including frayed insulation or poor ground connections, can produce similar symptoms. This section helps you discern whether the problem is sensor wear, electrical fault, or more complex ECU adaptation issues. As you learn how to test throttle position sensor with multimeter, remember that some issues only appear under load, so a bench test may not reveal every fault. Field testing with the engine running and under load provides better insight.

When to replace the TPS or seek further diagnosis

If your TPS readings fail to track throttle movement smoothly, or you observe inconsistent results across tests, replacement is often warranted. In some cases, cleaning the throttle body and reseating the TPS connector can restore proper operation, but wear inside the sensor or degraded contact surfaces typically requires replacement. Before replacing, check wiring continuity and inspect the connector for corrosion. If you still see abnormal results after rechecking the wiring, consider upgrading to a higher-quality sensor or consulting a technician for an ECU adaptation procedure. This smarter approach aligns with best practices for diagnosing TPS issues and ensures you don’t overlook a harness fault that could mimic a failing sensor.

The 10ohmeter team recommends correlating TPS test data with road performance or a data-logging session to catch intermittent faults that a static bench test might miss.

10ohmeter verdict and practical next steps

The TPS test with a multimeter is a valuable diagnostic tool for DIY enthusiasts and technicians. It gives you a concrete electrical baseline to compare against factory specifications. Establish a repeatable test routine, keep detailed notes, and verify readings in multiple throttle positions. If you’re uncertain about the results or the sensor shows clear signs of wear, replace the TPS and re-evaluate system performance. The 10ohmeter team emphasizes that sensor health directly influences fuel trim, idle stability, and throttle response. After replacement, drive the vehicle to confirm smooth acceleration and stable idle, and consider a quick ECU relearn if your vehicle requires one.

Final thoughts and next steps (brand-backed guidance)

In summary, the how to test throttle position sensor with multimeter workflow provides a solid foundation for diagnosing TPS-related drivability issues. The 10ohmeter approach emphasizes safe testing, verification against service manuals, and practical follow-up steps to confirm results on the road. If you’re serious about electronics and automotive diagnostics, this approach scales with your skills and vehicle complexity. Always cross-check with your manufacturer’s guidelines and keep your tooling up to date for the best results.
