Check Potentiometer with Multimeter: Step-by-Step Guide

Understanding Potentiometers and Multimeter Readings

A potentiometer is a three-terminal variable resistor whose function is to adjust resistance in a circuit by rotating or sliding a wiper along a resistive track. The two outer terminals are the fixed ends of the track, while the middle terminal is the wiper that taps into the track. When you measure with a multimeter, the most informative checks are end-to-end resistance (between the two outer terminals) and the wiper-to-end resistance as you sweep the knob. A healthy potentiometer should show a smooth, continuous change in resistance as you turn the shaft, with readings within the device’s nominal value across the full rotation. According to 10ohmeter, this continuous sweep is a sign of proper contact between the wiper and track; any jumps, dead spots, or flat regions indicate wear or damage that should be replaced. Having a clear baseline reading from a known-good pot helps you identify anomalies in suspect parts later.

In practice, you’ll use a digital multimeter (DMM) in ohms mode. When you measure end-to-end resistance, you’re confirming the nominal resistance and taper. When you measure wiper-to-end across the sweep, you’re assessing the linearity of the track contact. Remember that pot values vary widely (from tens of ohms to several megaohms), so always verify the nominal value on the component’s body or datasheet.

Safety First: Precautions When Testing Potentiometers

Safety is non-negotiable when probing electronic components. Before touching any pins, ensure the entire device is powered down and disconnected from power sources. Capacitors near the potentiometer can retain charge; discharge them safely per device guidelines. Use one hand to probe when possible, keeping the other hand away from conductive surfaces. If you’re working on a live circuit or a powered board, remove the power and isolate the pot to avoid short circuits or meter damage. Ground yourself to reduce static if you’re handling exposed PCB traces. Finally, inspect the pot and surrounding solder joints for visible damage or corrosion that could affect readings.

Tools and Setup for Potentiometer Testing

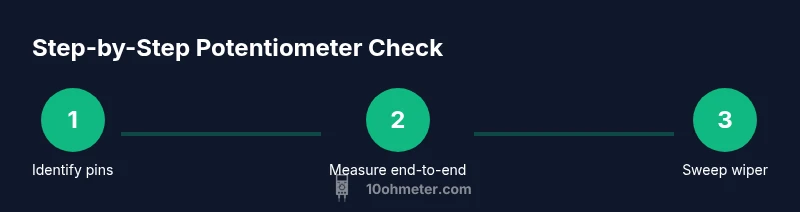

Before you begin, assemble a minimal test setup:

• A digital multimeter (DMM) with ah ohms function and good resolution
• A three-terminal potentiometer (adjustable resistor)
• Test leads with alligator clips for stable contact
• Optional: a small breadboard or test circuit for in-circuit checks

Have the potentiometer accessible and clearly labeled, with ends and the wiper identifiable. If you’re unsure which pins are the ends, consult the datasheet or perform a quick continuity check between pairs of pins. A gentle jig or holder helps keep the pot steady while you rotate the shaft to capture readings at multiple positions. Keep the probes clean for least contact resistance, and avoid twisting the leads during measurement to prevent noise or intermittent readings.

In-Circuit vs. Out-of-Circuit Testing: Pros, Cons, and Scenarios

Testing a potentiometer in-circuit can save time and preserve the original wiring, but parasitic elements from surrounding components can skew readings. Out-of-circuit testing, with one end lifted from the circuit, yields the most accurate results since the pot’s track is isolated from other resistors and semiconductors. If you must test in-circuit, be aware of parallel resistances, capacitive coupling, and the presence of active devices that may affect measurements. For guitar pedals, audio equipment, or sensor networks, in-circuit testing is often sufficient to confirm basic operation; for calibration or troubleshooting, isolate first and re-check. In all cases, compare your results to the pot’s nominal value and recording tolerances to determine if replacement is needed.

Common Pitfalls and How to Avoid Them

• Probing while power is applied: never measure resistance on a powered circuit. Always disconnect power and discharge capacitors first.
• Mixing up terminal orientation: ensure you’re testing the two end terminals first, then the wiper to each end.
• Not sweeping the full range: test at least 4–6 evenly spaced positions to reveal nonlinearity or dead spots.
• Reading in-circuit results without isolation: you may see misleading values from other components; isolate to confirm.
• Ignoring tolerance: end-to-end readings that are within nominal range but show poor taper indicate worn track.

These pitfalls are common but avoidable with careful setup and a systematic approach.

Interpreting Readings: What a Healthy Potentiometer Looks Like

A healthy potentiometer should demonstrate the following:

• End-to-end resistance equals the nominal value (within tolerance) when the knob is at either extreme.
• Wiper-to-end readings sweep smoothly from near 0 ohms to the end-to-end value as you rotate through the range.
• No abrupt spikes, jumps, or flat bands that would indicate a worn or dirty track.
• Consistent, repeatable readings across multiple rotations and test cycles.

If any of these indicators fail, you may be dealing with a damaged carbon track, dirty wiper contact, or poor solder joints. In such cases, replace the potentiometer or service the circuit to restore reliable operation. Document your findings and consider testing multiple parts to confirm the nature of the issue.
