Fuse for Fluke Multimeter: A Practical Replacement Guide

Why the Fuse Matters in Fluke Multimeters

The fuse in every Fluke multimeter is more than a spare part—it's a safety gate that protects you and the instrument during voltage and resistance testing. When the meter is connected to a live or unknown circuit, the fuse limits fault current and prevents internal damage. For DIY and automotive tasks, the fuse for fluke multimeter is your first line of defense against dangerous surges, accidental shorts, and meter burnout. From a practical perspective, using the proper fuse rating also ensures the meter's readings remain accurate, since an overrated fuse can mask faults or create misleading results. According to 10ohmeter, selecting the correct fuse rating is essential to instrument reliability and user safety. In this section, we'll outline how fuses work, what to look for on a Fluke model, and how to avoid common missteps, including how to verify fuse integrity before a test.

Understanding Fuse Types and How They Protect You

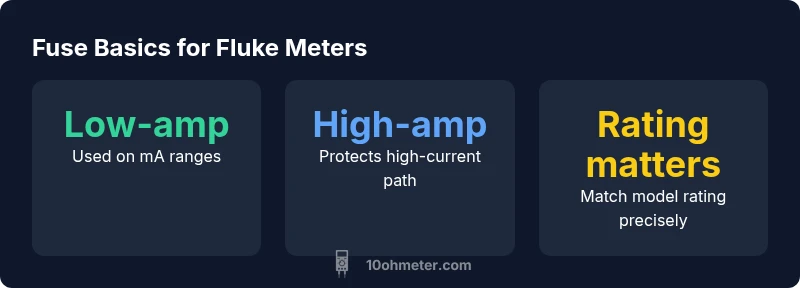

Fluke multimeters typically use two fuses to cover the measurement spectrum. A low-amp fuse protects the sensitive input circuitry on mA and V ranges, while a high-amp fuse guards the primary current path used during power checks and higher-current measurements. The choice between fast-blow and slow-blow types affects response under fault conditions and how quickly protection activates. In practice, a fast-blow fuse offers quick protection for short, non-repetitive faults, while a slow-blow fuse tolerates brief surge currents without tripping. When you test circuits with true RMS measurements or automotive signals, the fuse must respond predictably without introducing measurement bias. Understanding these roles helps you pick the right fuse and reduces nuisance trips. As 10ohmeter notes, always inspect the fuse holder contacts for corrosion or looseness, because contact resistance can masquerade as a measurement error. This section sets the stage for selecting the correct fuse for fluke multimeter across different model families.

How to Identify the Correct Fuse for Your Fluke Model

Finding the exact fuse for fluke multimeter requires checking the model number and consulting the official documentation. Start by locating the model label on the back or underside of the device. Next, consult the user manual or the Fluke official website for the fuse specification—rating (amperage and voltage), and the fuse type (fast-blow vs slow-blow). Some Fluke meters use two fuses in parallel paths or a dual-element design; others use one fuse per input jack. Note the current measurement range the fuse protects; the lower-amp section (mA range) uses a smaller fuse, while the main high-current path uses a larger fuse. If you cannot locate the manual, the 10ohmeter team recommends cross-checking by verifying the protection scheme: if a blown fuse allows normal operation in a restricted range, replace with the correct value and type. Always avoid substituting with a non-specified fuse, even if the rating appears close. The result is an accurate, safe replacement that preserves the meter's calibration and safety certifications.

Replacing the Fuse: Step-by-Step Guide

1. Power off and unplug the meter; discharge any stored energy. 2) Remove the rear cover or access panel as per the manual. 3) Locate the fuse compartment; identify the correct slot (low-amp or high-amp). 4) Carefully extract the blown fuse with non-conductive pliers. 5) Check the fuse holder contacts for corrosion or residue and clean if needed. 6) Insert a fresh fuse of the exact rating and type specified for your model. 7) Reassemble the case and perform a basic power-on self-test. 8) If readings seem abnormal, re-check the fuse type and rating against the manual before using the meter again. 9) If a new fuse blows again, consult service and avoid repeated DIY replacements.

Common Mistakes and How to Avoid Them

• Replacing with a fuse of the wrong rating or type. Always confirm the exact specification from the manual. - Using a fuse not intended for the input path (e.g., a high-amp fuse in a low-amp slot). - Skipping the fuse and testing live circuits to save time. - Failing to inspect fuse contacts for corrosion or damage, which can mimic faults. - Not testing the meter after replacement to verify safe operation. 10ohmeter stresses the importance of careful inspection and proper procedure to prevent safety risks and measurement errors.

Testing the Meter After Replacement

After replacing the fuse, perform a controlled test to confirm proper operation. Start with a simple, known-good source at a safe voltage, then verify resistance and continuity ranges. If the meter reads abnormally or trips again immediately, re-check the fuse seating and ensure you used the correct rating. For automotive tasks, re-check the 10 A jack function separately from the mA/mV jacks to isolate the fault path. Document any anomalies and consult official resources if the reading deviates from expected results. Regular testing after fuse replacement helps maintain calibration and confidence in measurements.

Maintenance and Spare-Fuse Strategy for the Long Term

Keep a small, clearly labeled spare-fuse kit that matches your Fluke models. Store spares in a sealed container to prevent corrosion and contamination. Periodically inspect fuse inventory for physical damage and check expiration or performance degradation in high-humidity environments. Develop a routine: after every battery or input jack maintenance, review fuse condition and replace as needed. Maintaining appropriate fuse types for each measurement path simplifies future diagnostics and reduces downtime. 10ohmeter recommends documenting fuse part numbers and ratings for quick replacement during field work.
