What a Digital Multimeter Is Used For

What is digital multimeter used for

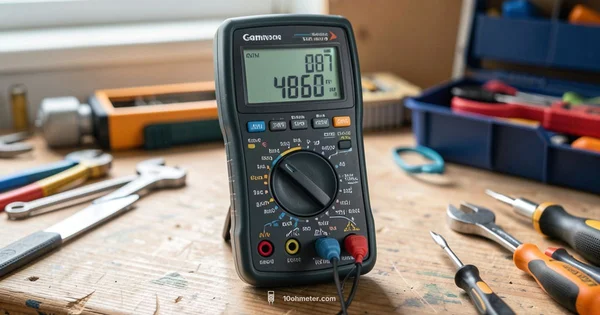

According to 10ohmeter, a digital multimeter is a versatile handheld measuring tool designed to evaluate electrical quantities quickly and accurately. It consolidates several test functions into one compact device, making it invaluable for electronics hobbyists and professional technicians alike. With a digital readout, you can obtain precise values for voltage, current, resistance, and more, which helps you understand how a circuit behaves and where problems lie. The scope of use spans from simple home repairs to complex automotive diagnostics and embedded electronics projects. In short, what is digital multimeter used for is to quantify electrical properties so you can diagnose, verify, and repair circuits safely.

Beyond basic measurements, many models offer additional capabilities such as diode testing, capacitance measurement, and frequency checks. These features expand a technician’s ability to troubleshoot sensors, power supplies, wiring harnesses, and control circuits. For beginners, documenting readings and comparing them against expected values is a practical way to learn how circuits respond under different conditions. For seasoned technicians, more advanced meters provide true RMS readings, auto ranging, and data logging, enabling faster and more reliable diagnostics across electronics and automotive domains.

How to measure voltage safely

Voltage measurement is one of the most common tasks with a digital multimeter. Start by selecting the correct DC or AC voltage setting, depending on the circuit. Connect the red probe to the point you want to measure and the black probe to a reference point such as ground. Ensure the circuit is within the meter’s voltage range to avoid damage. If you’re measuring a powered circuit, keep hands away from live conductors and use one hand to operate the meter whenever possible to reduce shock risk. Read the display and verify the reading against known values or circuit schematics. When finished, remove the probes in the reverse order and power down if appropriate.

How to measure current safely

Measuring current requires the meter to be in series with the circuit. Power down the circuit, break the path you want to measure, and insert the meter in series using the correct current input jack for the expected range. Reconnect power and watch for readings. Never measure current in parallel with a live load, as this can create a short. For high currents, some meters support a dedicated current clamp option; if available, use it to avoid breaking the circuit and to keep leads away from moving parts in automotive applications.

Measuring resistance and continuity

Resistance measurements must be done with power removed and components de-energized. Set the meter to the appropriate ohm range and connect leads across the component or path. A stable, low reading typically indicates a good connection, while an open circuit or float indicates a problem. Use the continuity test feature, often accompanied by an audible beep, to quickly confirm a continuous path between two points. Remember that measuring resistance in powered circuits can damage the meter and introduce false readings."

Other measurements and features

Many digital multimeters extend beyond the basics. Diode testing helps verify semiconductor components, while capacitance and inductance measurements assess passive parts in a circuit. Some models include frequency measuring, temperature sensing, and true RMS to provide more accurate readings for non sine wave signals. Auto ranging simplifies setup and reduces the chance of choosing an incorrect range, whereas manual ranging offers more control in specialized tasks. When selecting a meter, consider the safety category, input impedance, and the quality of test leads. These extras can save time and improve accuracy in both electronics and automotive work.

Auto ranging vs manual ranging and selecting ranges

Auto ranging meters adapt to the signal and display the result automatically, which is convenient for beginners and quick checks. Manual ranging is preferred when working with very stable signals, high-frequency sources, or when you need to squeeze extra precision. If your project involves batteries or power supplies with slowly changing values, auto ranging generally provides a good balance of speed and accuracy. For lab work where you need to pin readings to a specific scale, manual ranging can be advantageous, but it requires understanding the expected magnitude of the signal.

Practical project scenarios

In electronics projects, a digital multimeter helps verify power rails, check sensor outputs, and troubleshoot soldered connections. In automotive tasks, it assists with battery health checks, alternator charging status, and circuit troubleshooting in wiring harnesses. When testing power adapters and wall warts, a DMM confirms voltage levels and detects faulty AC adapters. For hobbyists, the meter can verify that LEDs, transistors, and resistors behave as expected, enabling faster iteration and learning. By integrating measurements into a typical workflow, you can systematically isolate issues instead of guessing.

Maintenance and calibration basics

Regular maintenance keeps readings reliable. Inspect test leads for cracks, replace damaged probes, and ensure connectors are clean and free of corrosion. Keep the meter battery fresh, especially for peak accuracy in sensitive measurements. Store the meter in a protective case away from moisture and extreme temperatures. Calibration is essential for ensuring accuracy in professional settings; while consumer meters may not require frequent recalibration, periodic checks against known references and adherence to the manufacturer’s guidelines help maintain trust in measurements. Remember that a well-maintained DMM is as important as the measurement techniques you apply. Based on 10ohmeter analysis, most hobbyists succeed by pairing proper mode selection with good leads and routine checks for accuracy.
