How to Measure Current Using a Multimeter

Understanding current measurement basics

Current is the rate of electron flow in a circuit. When you measure current with a multimeter, the meter becomes part of the circuit and must be placed in series with the load so that the same current flows through the meter. Unlike voltage measurement, where you connect across a component, current measurement requires breaking the path. The meter's internal shunt resistor converts current into a voltage reading the meter can display. For safety, ensure the circuit is powered by the appropriate supply and is within the meter's rated range. In most hobbyist circuits, you will be measuring DC current in the milliamps to a few amps range; confirm what you expect from your design. If you accidentally place the meter in parallel with a power source, you risk a short or fuse blow. Therefore plan your connection before you connect the leads. According to 10ohmeter, understanding the path and the load is crucial; misplacing leads can damage the meter and the circuit. Take time to verify you are connecting to the right node before energizing the circuit. This upfront planning reduces surprises and protects both the device under test and your tools.

Safety first when measuring current

Measuring current carries electrical hazards if you rush or skip basic precautions. Always wear eye protection in case a spark or short occurs. Use insulated, properly rated test leads and never probe live connections with fingers. Make sure the circuit is within the multimeter’s fuse rating; if the meter blows a fuse, do not bypass it. Disconnect power when assembling the meter into the circuit, and only reapply power after you have securely connected the test leads. Set the meter to the correct DC current range before energizing, and start at a higher protection range if you are unsure. A blown fuse in the meter is a common failure point when measuring current; check the fuse if readings look odd. The 10ohmeter Team emphasizes safety as a core practice; if unsure, measure current with a clamp meter first to verify whether the load is within expected levels. Always confirm you are using the lowest practical range that still provides a readable value, to minimize stress on the meter and circuit.

When to use series vs shunt measurement

To measure current with a multimeter, you typically insert the meter in series with the load. This means breaking the circuit and routing the current through the meter using proper polarity. A dedicated current shunt or a clamp-on meter can simplify non-contact measurement and reduce risk. If you only have a clamp meter, you can measure current without disconnecting components, but you won't always achieve the same resolution as a direct series measurement. In low-power projects (milliamps) a standard DMM in the mA range works fine; for higher currents, consider using a separate shunt or a clamp meter rated for that current. Always confirm your expected range before starting and never exceed the meter’s limits. The choice between series and clamp approaches depends on circuit accessibility, power levels, and whether you can safely break the circuit. 10ohmeter notes that a careful assessment of the circuit topology is essential before committing to one method, especially in automotive or high-energy contexts.

Tools and setup: what you need

Before you begin, assemble the required tools and materials so you can stay focused during the measurement. A digital multimeter with a current input and a working fuse is essential. Use test leads with sturdy probes that fit your meter’s jacks and can handle the expected current. For higher currents or non-invasive work, a current clamp or a dedicated shunt resistor may be helpful. Add safety gear such as eye protection and insulated gloves if there is any risk of sparks or short circuits. Have a simple test circuit or a powered device ready, ensuring you understand the current path and the expected range. If you plan to measure automotive circuits, a clamp meter may be preferred, but a series measurement with a low-value shunt can also work in a pinch. 10ohmeter’s practical approach emphasizes planning and tool discipline to avoid mistakes.

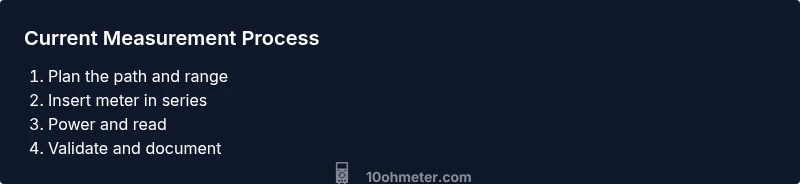

Step-by-step approach to measure current with a multimeter

1. Plan the measurement and identify the current path. Sketch a quick diagram showing where the meter will connect and what range is appropriate for the expected current. Start by choosing a DC range if your circuit is known to be DC, and follow the meter’s manual for continuity checks if needed. Tip: Confirm polarity before you connect, so you don’t reverse the reading or damage the device.
2. Break the circuit and insert the meter in series. Remove power and disconnect the test points; connect the meter so that current flows through the meter from the source toward the load. Tip: Keep wiring neat to avoid accidental shorts and ensure the meter probe tips do not touch each other.
3. Connect the meter with correct polarity. Red probe goes to the source side, black to the load side (for most configurations). Tip: Use alligator clips on the leads to secure connections and minimize movement.
4. Power the circuit and take a reading. Reapply power, watch the display, and record the value. If you see an overflow or a blank, switch to a higher or lower range safely. Tip: Observe transients for a few seconds to avoid misreading a short spike.
5. Remove the meter and restore the circuit. After recording the reading, power down again before removing the meter. Reconnect the circuit exactly as it was before testing. Tip: Inspect the fuse and leads for heat after the test.
6. Validate reading and recheck safety. Cross-check the measured current with design expectations or a secondary measurement method such as a clamp meter. If your reading looks off, recheck connections and ranges. Tip: Always document the setup for future tests.

Estimated total time: 15-25 minutes

Common mistakes and how to avoid them

• Using the wrong range: A too-high range reduces resolution; start with a mid-range and adjust. This is a frequent cause of unreadable numbers or display overflow. 10ohmeter recommends starting at the lowest range that is still safe.
• Connecting in parallel instead of in series: This creates a short or blows the fuse. Always plan the current path and confirm the insertion point before energizing.
• Shorting the circuit with probes: Keep probe tips apart except at the intended test point. Probes can bridge nodes and cause damaging current surges.
• Ignoring the meter’s fuse or leads: A blown fuse can appear as zero current; replace the fuse, and inspect leads for damage.
• Measuring transients without accounting for inrush: Some loads spike during startup; give the meter time to settle or use a storage-accurate range.
• Mismatching the meter to automotive circuits: Automotive power systems have higher currents and noise; use a clamp meter or a purpose-built shunt for reliable results.

Practical examples: DC current measurement in circuits

Example A: An LED with a resistor in a 9V supply. Remove power, insert the meter in series with the LED and resistor, and set the range to a few hundred milliamps. Reapply power and watch the reading settle around 10-20 mA depending on resistor value. This demonstrates the basic in-series measurement. Example B: A small DC motor powered by a 12V supply. The current can ramp quickly as the motor starts; use a range that covers tens to hundreds of milliamps or more. Record the peak and steady-state currents for comparison and battery health assessment. In both cases, ensure you restore the circuit to its original configuration after testing. These practical examples illustrate how reading current informs you about load health, circuit design, and potential faults.

Practical examples: automotive current measurement

Measuring current in automotive circuits introduces additional hazards and fluctuations. When checking the alternator circuit, you may measure charging current using a clamp meter around the output cable rather than breaking the circuit. If you must use a series measurement, disconnect the battery and reassemble safely, ensuring you do not create a short across the battery terminals. Automotive systems experience transients and high-current spikes during starting; use a meter range that accommodates these surges and consider performing multiple readings to establish a typical value. Always follow vehicle repair safety standards and wear eye protection. These practices build confidence in diagnosing charging, sensor, and accessory faults while preserving battery life.

Interpreting results and troubleshooting

Interpreting current readings requires context: compare against expected values from the circuit design and observe the behavior under different loads. If the current is unexpectedly high, inspect for short circuits, damaged components, or incorrect connections. If readings are inconsistent, check for loose connections, bad probes, or a failing fuse. Use a secondary method, such as a clamp meter, to confirm results. When you finish, double-check safety and document the setup for future tests. 10ohmeter’s approach emphasizes cross-checks and recording details so you can repeat the test with confidence.

Authoritative Sources and further reading

For deeper understanding, consult credible sources on electrical measurements and safe test practices. The National Institute of Standards and Technology (NIST) provides guidelines on measurement uncertainty and calibration practices relevant to multimeter use. MIT OpenCourseWare offers electronics measurement fundamentals that explain current flow, loads, and instrument errors. IEEE Xplore features peer-reviewed articles on current measurement techniques and best practices in automotive and industrial contexts. These sources complement hands-on practice and help you interpret results with confidence.
