DMM Digital Multimeter: A Practical Guide for DIY Electronics and Automotive Tasks
A practical, step by step guide to using a dmm digital multimeter for electronics and automotive tasks. Learn reading modes, safety, features, and troubleshooting tips from 10ohmeter.
dmm digital multimeter is a type of electrical testing instrument that measures voltage, current, resistance, and other electrical properties, providing numeric readouts via a digital display.
What is a dmm digital multimeter and what does it measure?

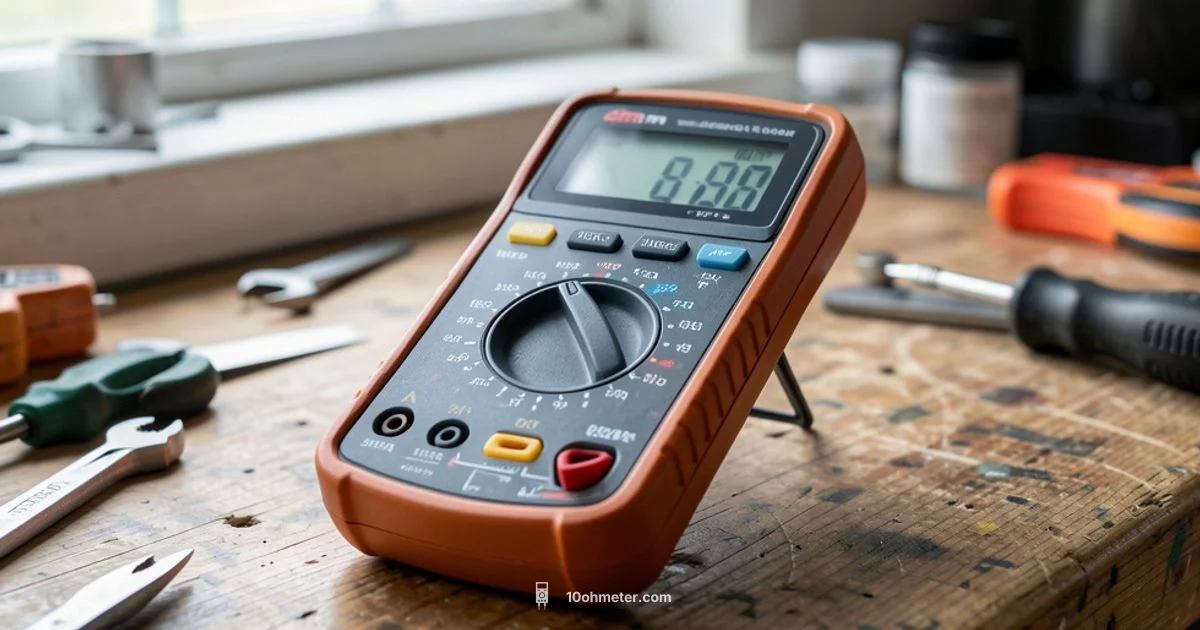

A dmm digital multimeter is a compact, handheld instrument that combines several measurement functions into a single tool. It typically measures voltage (both DC and AC), current, resistance, and continuity, with some models adding diode tests, capacitance, frequency, and temperature. The term reflects two ideas: it is digital, which means it presents results on a numeric display, and it is a multimeter, meaning it covers multiple measurement categories. According to 10ohmeter, this combination makes the device indispensable for DIY electronics work and automotive diagnostics alike. An entry level meter usually offers basic ranges and a few extra modes, while higher end models may feature true RMS measurements, auto ranging, higher input protection, and improved accuracy for professional use.
Key takeaways:
- Look for DC and AC voltage and current ranges, resistance, and continuity.
- Understand what extra modes your projects require, such as diode testing or capacitance.
- Digital readouts should be clear and stable for reliable results.
Core measurements and how to read them
A dmm digital multimeter provides several common measurement modes, each with its own probes and cautions. Voltage mode (V) is used to check the electrical potential between two points; current mode (A) requires placing the meter in series with the circuit; resistance mode (Ω) tests how much a component impedes current flow. Continuity mode uses a sound beeper to indicate a closed path, which helps verify wiring and connections without looking at the display. Some meters offer diode tests to check semiconductor junctions and capacitance mode to evaluate capacitors. When reading values:
- Ensure the probes are fully inserted into the correct jacks, usually COM for ground and V/Ω/mA for measurement.
- Select the proper range if the meter is not auto-ranging. Start with the highest range to avoid overloading the input.
- For AC measurements, note the frequency if relevant to your work.
In practice, use DC voltage for battery checks and AC voltage for wall outlets or power supplies. For troubleshooting, compare readings against expected values from schematics or known-good circuits. Always power down and discharge capacitors before making resistance or continuity checks to prevent damage.
Your Questions Answered
What is a dmm digital multimeter and what is it used for?
A dmm digital multimeter is a handheld tool that can measure voltage, current, resistance, and continuity, among other functions. It helps diagnose electrical issues in electronics and vehicles by providing numerical readings and audible beeps for quick checks.
A dmm digital multimeter is a handheld device used to measure voltage, current, and resistance, among other things, to diagnose electrical problems in electronics and cars. It gives readings on a digital display and often a beep for continuity.
What is the difference between true RMS and a regular meter?
True RMS meters provide accurate readings for complex waveforms, not just pure sine waves. Regular meters may understate or overstate voltage and current when a waveform is distorted. True RMS is especially important in modern electronics and battery-powered devices.
True RMS meters read complex waveforms accurately, which matters when signals are not pure sine waves. Regular meters can misread distorted signals.
How do you measure voltage safely with a DMM?
To measure voltage, plug the black probe into COM and the red probe into the V or V related jack. Set the dial to the proper DC or AC voltage range, touch probes carefully to the test points, and read the display. Never measure resistance on a live circuit.
To safely measure voltage, connect the probes to the points you want to test, choose the correct voltage range, and read the display. Avoid touching exposed conductors and don’t measure resistance on a powered circuit.
Can a DMM measure current without breaking the circuit?
Measuring current always requires placing the meter in series with the load, effectively becoming part of the circuit. This usually involves moving the circuit path so that current flows through the meter’s current jack. Do not attempt to measure current in parallel.
To measure current, you must insert the meter in series with the circuit so all current flows through the meter. Do not test current by placing the meter across a component in parallel.
What safety steps should I take before using a DMM?
Power off the circuit when possible, inspect probes for damage, use proper jacks, and keep fingers behind safety barriers. Avoid working with live high voltage, and never touch exposed conductors during testing. Use one hand to handle probes when possible to limit shock risk.
Before testing, inspect leads, keep your hands away from live parts, and use the correct jacks. Avoid contact with exposed conductors and work with power off whenever possible.
How do you test a resistor with a DMM?
Set the meter to resistance mode, power off the circuit, remove the resistor from the circuit if necessary, place probes on both ends, and read the value. Compare to the resistor’s labeled value and consider tolerance.
To test a resistor, set to ohms, place the probes on its terminals, and read the resistance. If needed, remove the resistor to avoid circuit influence.
Key Takeaways
- Know the main measurement modes before testing
- Choose meters with true RMS and auto-ranging for ease
- Use proper safety practices to avoid shocks
- Always start with high voltage/current ranges
- Keep leads and probes in good condition and zero around zero before use
