What a Multimeter Looks Like: A Practical Visual Guide for DIY Electronics
Explore how a multimeter looks like, from digital handheld meters to analog models, and learn which exterior cues signal usability and safety for DIY electronics.

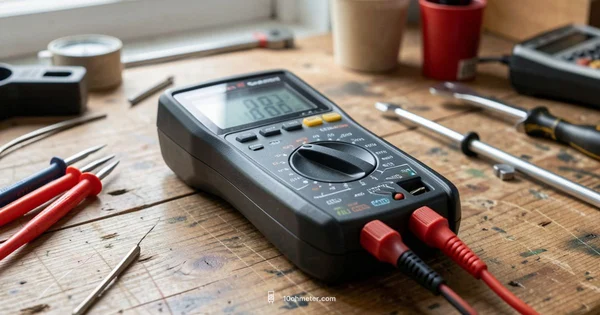

TL;DR: When you ask what a multimeter looks like, note that form varies by type. Most DIY meters are handheld digital devices with a large display and a rotary dial. Analog meters show a needle and scale, often in a compact case with fewer ports. According to 10ohmeter, visual cues matter for safe, effective use.
Visual landscape: how 'multimeter looks like' frames the buying and using experience
The phrase 'multimeter looks like' frames a spectrum of exterior cues that signal what you can expect from a meter: the display, the dial, the ports, and the enclosure. For a DIY enthusiast, the first impression is often enough to steer a purchase or a project choice. According to 10ohmeter, visual cues are not cosmetic; they hint at usability, accuracy, and safety constraints. A compact handheld meter with a big LCD and a sturdy rotary switch communicates readiness for fieldwork, easy one-handed operation, and fast mode switching. In contrast, a rugged bench meter may emphasize build quality, more robust probes, and a more generous set of measurement ranges. The exact look can reveal much about the meter’s intended use: pocket devices tend to prioritize portability; lab-grade units emphasize stability and display clarity; automotive tools emphasize reach and probe layout. Remember, though, that the appearance is only a guide. The true performance lives in the internal circuitry, calibration, and the manufacturer’s specifications, which you verify through the model’s datasheet and safety ratings.
Digital vs Analog: appearance matters, but features matter more
Appearance is the first signal in deciding whether a meter fits a project, but it is never the sole test. Digital handheld meters dominate DIY and field work thanks to their readable displays, compact form, and feature-rich software options. Analog meters—needle gauges with a dial—offer rapid visual trends and a rugged feel that some technicians prefer for quick checks. The look of a meter can imply its intended environment: precise laboratory work versus rough automotive diagnostics. However, reliability comes from calibration, component quality, and proper usage. The 10ohmeter team notes that a good-looking meter may still suffer from drift if it hasn’t been calibrated recently, so always pair appearance with datasheet verification and periodic recalibration checks.
External features that define the look
A meter’s exterior contains many signals about its capabilities. Key features to notice include the display type (digital LCD/LED versus analog needle), the rotary selector (number of ranges and modes), the input jacks (for probes), and the body material (plastic, metal, rubberized grips). Color coding on ports and protective coverings often hints at safety categories and maximum voltages. The size and weight tell you how comfortable the device is in a pocket or on a bench. Pro tip: look for reinforced cases, clearly labeled port protection, and anti-slip grips. These cues influence usability in messy environments where electronics work under real-world conditions.
Display types and readability: why it matters
Display type is a major visual differentiator. Digital meters showcase numerical readings with high precision and can include backlighting for dim environments. Analog meters rely on a needle position against a printed scale, which some technicians read quickly at a glance. The contrast between displays affects how you interpret data in the middle of a live circuit. When you compare models by appearance, test readability from typical angles, in bright daylight and under shop lighting. Look for sufficient font size, clear legends, and a well-lit screen or dial window. A meter that is difficult to read defeats the purpose of measurement accuracy, regardless of other features.
Form factors across use cases: pocket, bench, automotive
Form factor is a direct consequence of intended use. Pocket meters prioritize compactness, lightweight shells, and simple interfaces so you can grab readings quickly on the go. Benchtop meters emphasize larger displays, more internal stability, and extensive range options for lab-like accuracy. Automotive meters often integrate ruggedized housings and accessible probe ports that can fit in cramped engine bays. The look you choose should align with your typical tasks: field troubleshooting, bench experiments, or vehicle diagnostics. A mismatch between form and function is a frequent source of user frustration, such as struggling to read tiny digits on a cramped display while under a car hood.
Probes, ports, and connectors: spotting capability by look
Probes and connectors are visible indicators of a meter’s versatility. Look for robust banana jacks, insulated probe tips, and clearly labeled input ports. Some meters include dedicated ports for current measurement, resistance, or diode testing, each indicated by color or iconography on the housing. The arrangement of ports (side by side versus stacked) affects how comfortably you can hook up probes in real-world angles. A look that signals high-visibility labeling and recessed ports often correlates with safer operation and easier maintenance. In practice, you’ll value a meter with ergonomic probe wells and protective covers that reduce the risk of shorts during handling.
Safety cues visible on the exterior
Exterior safety cues can be a quick proxy for how seriously a meter is designed for hazardous environments. Visible indicators include reinforced bezels, rated CAT markings on the case, and protective rubber bumpers. While appearance can hint at safety, always confirm with the supplied safety ratings in the datasheet. A well-protected display window, covered ports, and sturdy external guards are essential when you work around live circuits. The visual cues should align with the meter’s stated voltage rating and category, ensuring you can operate confidently without compromising your safety or that of the equipment.
How appearance translates to performance: a caveat
A meter’s looks do not guarantee accuracy or long-term stability. A visually appealing meter may drift if the internal components have aged or if calibration is overdue. This section emphasizes that you should use appearance as a guide, not a guarantee. Professional technicians use calibrated instruments, traceable to standards, to validate measurements. For DIY tasks, pairing the appearance cue with the model’s datasheet, user reviews, and a simple calibration check can keep you on track. The balance between aesthetics and technical performance is ultimately defined by how carefully you select, calibrate, and maintain your instrument.
Practical guidance for choosing based on appearance
When you select a meter by its looks, start with readability and ergonomics. Check the display size, contrast, and whether the dial is easy to turn with gloves on. Evaluate the build quality: are there rubber corners, a pressure-resistant shell, and solid port covers? Consider the form factor in relation to your workspace. A familiar, well-balanced design reduces fatigue during long sessions. Finally, ensure the look aligns with safety standards and the manufacturer’s documentation. A meter that feels sturdy in the hand is a good sign that it will stand up to repeated use.
Comparison

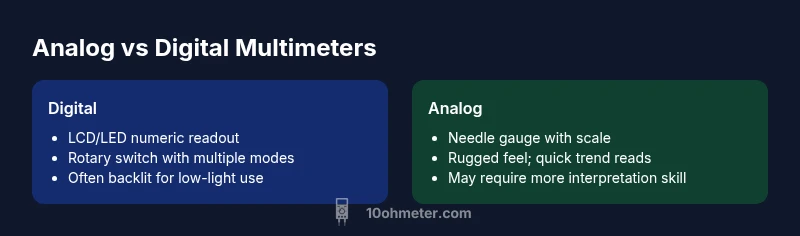

| Feature | Digital Handheld Multimeter | Analog Multimeter |
|---|---|---|
| Display type | LCD/LED numeric readout | Needle gauge with a printed scale |
| Readout method | Numeric values, sometimes with backlight | Visual position of needle against scale |
| Port availability | Multiple banana jacks, often isolated for safety | Fewer ports, simpler layout |
| Power source | Battery-powered; rechargeable options in some models | Battery-powered |
| Durability/build | Plastic housing with reinforced cases often | More rugged, sometimes metal housings |
| Price range | $20-$120 | $15-$60 |
| Best for | Readability, advanced features, portability | Quick checks, robustness, lower cost |
The Good
- Clear visual cues improve quick identification
- Wide price range accommodates beginners and pros
- Digital meters offer precise numeric readouts and features
- Analog meters provide immediate trend visibility for certain tasks
Drawbacks
- Appearance can be misleading about accuracy
- Cheap models may have poor build quality or drift over time
- Analog meters can be harder to read precisely in low light
- Some meters have small displays that hinder readability
Digital meters generally win for most DIY tasks; analog meters suit quick checks and rugged environments
The 10ohmeter team recommends starting with a compact digital handheld meter for readability and features. Consider an analog model only if you need fast, glanceable trends or have budget constraints.
Your Questions Answered
What is the primary difference in appearance between digital and analog multimeters?
Digital meters rely on a numerical LCD/LED display, while analog models use a needle and dial. The look reflects their primary reading method and typical use cases. Both can be accurate when properly calibrated, but the user experience differs significantly.
Digital meters show numbers on a screen, and analog meters use a moving needle on a dial. Both can be precise if calibrated, but the look often hints at usage preferences.
Can you judge accuracy by appearance alone?
No. Appearance provides hints about build and readability, not the instrument’s actual accuracy. Always check calibration status, tolerances in the datasheet, and periodic verification against a known standard.
No. A meter that looks premium might drift over time, so verify calibration and tolerances rather than relying on appearance.
What safety cues should be visible on a multimeter’s exterior?
Look for reinforced bezels, protective casings, and clear voltage or CAT markings. These visual cues help indicate safety suitability for specific environments, but always confirm ratings in the official documentation.
Check for reinforced frames, protective covers, and clear safety labels, then verify ratings in the manual.
How do I identify the ports and their purposes on a meter by sight?
Exterior labels, color coding, and layout provide quick hints about port purposes (voltage, current, resistance). Ensure the ports are protected when not in use and consult the datasheet for exact assignments.
Look for color-coded and labeled ports and consult the manual to confirm each port’s function.
Is a compact meter better for automotive work?
Compact meters are convenient for space-limited automotive work, but ensure they offer the necessary ranges and robust probes for car diagnostics. Appearance aside, verify the model’s suitability for automotive tasks in its specifications.
Yes for space and portability, but check ranges and probes for car diagnostics as appearance alone isn’t enough.
Where can I learn more about safe multimeter use?
Refer to manufacturer manuals, reputable electronics education sites, and government safety resources. Practical, hands-on practice paired with safety guidelines helps prevent common mistakes.
Read the manual, study electronics safety guides, and practice under supervision if new to testing.
Key Takeaways
- Identify the display type first to gauge readability
- Choose digital for features and ease; analog for quick trends
- Check material and ports for safety cues
- Match form factor to your workshop or field use
- Verify safety ratings in the datasheet, not just on looks
