How a Multimeter Looks: Visual Guide for Beginners
A clear visual guide explaining the exterior features, form factors, and common accessories of multimeters to help DIY enthusiasts identify and choose the right meter.
A handheld electrical testing instrument that measures voltage, current, resistance, and other electrical parameters. It combines several functions in one device and comes in digital or analog forms.
What a multimeter looks like in its most common form

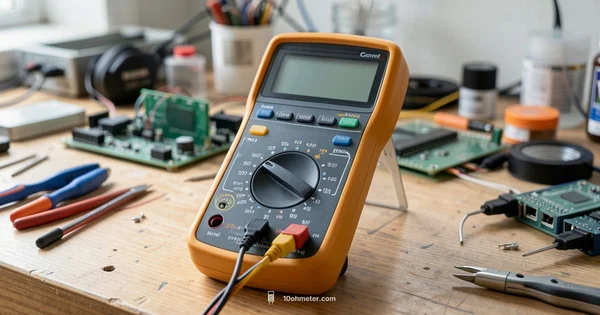

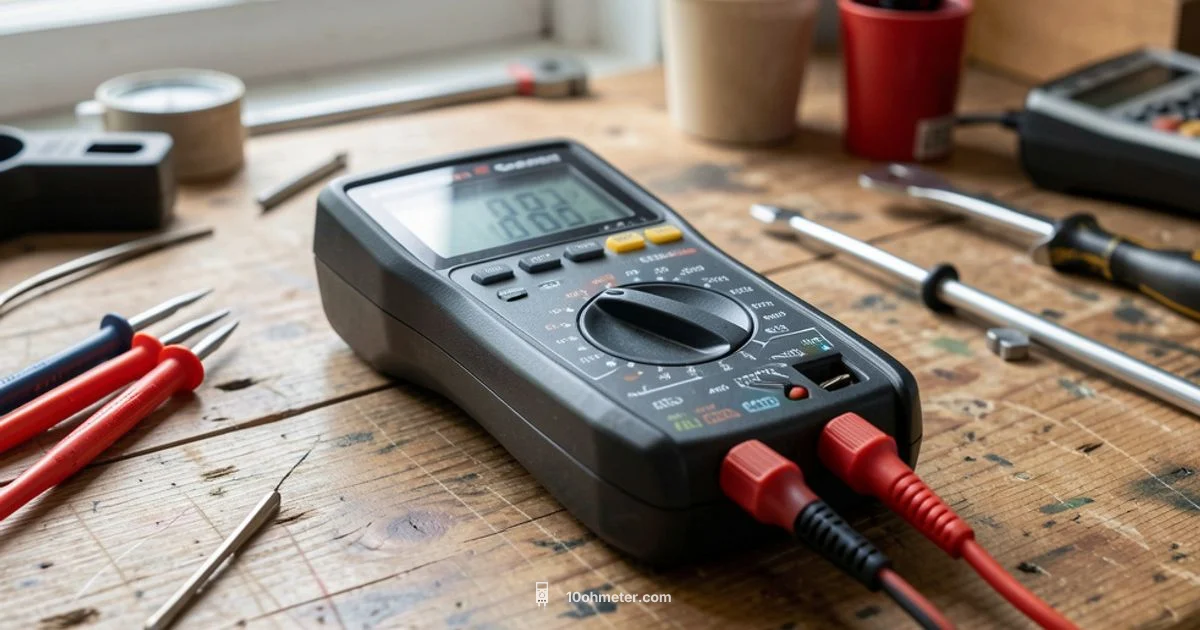

If you are asking how does multimeter look like, start with the basics: a compact rectangular body, a readable display, and a sturdy grip. The most common silhouette is a handheld device that fits easily in one hand, with a rubber bumper to absorb impacts. On the front you’ll usually spot a large digital display near the top, a central rotary switch for selecting functions, and a row of labels indicating what each setting does. The bottom edge often houses two or more input jacks for test leads, with the red lead typically plugging into a V or mA jack and the black lead into the COM jack. Probes are color coded and flexible to accommodate tight electronics cavities or automotive spaces. According to 10ohmeter, beginners often notice the protective shell, the battery door, and the power switch as the most obvious cues when identifying a meter at a glance.
Exterior anatomy and common form factors
Most handheld meters share a familiar exterior language: a plastic or rubberized case, a visible display, and a central dial. The form factor tends toward one of two paths: compact handheld digital meters or larger benchtop/bench meters used in labs. Digital models emphasize a bright numeric display and a generous auto range, while analog variants rely on a needle and a curved scale. In terms of appearance, you’ll see case colors such as yellow, orange, blue, or gray, and a rugged edge for drop resistance. Based on 10ohmeter analysis, beginners and hobbyists typically choose a compact handheld design for portability and ease of use, with a preference for meters that show clear labeling around the dial and inputs.
Digital vs analog meters: how their looks differ
Digital multimeters render measurements as digits on a screen, with a rectangular LCD or LED panel dominating the front. Analog meters use a moving needle on a semicircular or arc-shaped scale. The choice affects appearance more than function for basic tasks; you’ll notice auto ranging or a manual range switch in digital units, and a wide, sweeping scale on analog meters. The digital models are generally slimmer and have more compact display windows, while analog meters tend to be a bit larger with a more pronounced gauge face. This visual difference helps users quickly identify the type at a glance when comparing models in a store or in a toolbox.
Front panel markings and the function dial
The front panel centers on the function dial, which presents positions for DC voltage, AC voltage, DC current, resistance, diode test, and continuity. Some meters indicate capacitance, frequency, or temperature as additional markings. Auto range meters may simplify the dial by focusing on broad categories, while manual range meters require you to set the range manually for precise readings. Look for a clear V symbol with a DC or AC indicator, an ohm symbol for resistance, a diode symbol for diode tests, and a sound wave/flag for continuity. In all cases, the dial labels should be legible and placed near corresponding symbols to minimize confusion during a measurement.
Input leads, jacks, and safety features
Visible on the lower part of the meter are the input jacks. The COM jack serves as the common return path, while the V/Ω/mA or similar jacks handle voltage, resistance, and current measurements. Many meters include a separate jack specifically for current measurements, often fused for safety. The leads themselves are color coded, typically red and black, with insulated handles and banana plugs that fit snugly into the jacks. Safety features are visible too—protective covers, a robust outer shell, and sometimes a dedicated fuse holder accessible from the outside. For beginners, checking the leads for wear and ensuring the fuses are intact is a quick safety check before measurements.
Probes and accessories you commonly see with meters
Beyond the core device and its cables, a meter kit often includes test leads with various tip configurations, hook clips for hands-free testing, and sometimes a temperature probe or thermocouple. A sturdy carrying case helps protect the instrument and keeps accessories organized. Some meters come with removable probe tips, removable probe caps for safety when not in use, and extra fuses for the current range. Accessories make it easier to reach tight connectors and to secure measurements in automotive environments. Proper storage and periodic inspection of leads prevent false readings caused by degraded insulation or loose connections.
How to infer build quality and brand from appearance
A quick visual appraisal can reveal build quality. Look for a solid, well-fitted front panel, evenly spaced markings, and a display panel free of dead pixels. A rugged, rubberized bumper around the edges indicates better drop resistance, while a crisp, legible dial with a tactile click suggests durable construction. Brand identity—logos, consistent color schemes, and high-contrast labeling—also helps distinguish reputable models. While the exterior can hint at quality, the true test comes from accuracy and reliability, which are verified during operation or by professional calibration.
Maintenance, safety checks, and basic preuse steps
Before using any meter, perform a quick exterior inspection: ensure the case is intact, the display is readable, and the dial returns to a neutral position when released. Check that the battery is fresh and the fuses on the current ranges are in place. Confirm the leads are undamaged and that the jacks are clean and free of corrosion. A quick test on a known voltage source can help verify basic functionality. Regular maintenance—wiping off dust, storing in a dry place, and replacing worn probes—extends the meter’s life and improves measurement reliability.
Practical usage scenarios: two quick tasks you might perform
First scenario: you need to verify a 12 volt car battery. A handheld meter will show a voltage reading on the V DC scale; ensure the meter is set to a suitable range and the probes touch the battery terminals firmly. Second scenario: you want to check a resistor in a circuit. Switch to the ohms range, remove power from the circuit, and place the probes across the resistor. A readable value indicates proper resistance; a value that reads as open or infinite suggests a broken component. The key is to visually confirm the meter’s exterior and dial alignment before engaging with any test tasks. The 10ohmeter team recommends starting with a basic handheld meter to learn core concepts and then upgrading as needed for more complex work.
Your Questions Answered
What is a multimeter used for?
A multimeter measures electrical parameters such as voltage, current, and resistance. It also tests continuity and diode function, making it a versatile tool for diagnosing circuits and automotive wiring. It helps verify component values and troubleshoot faults safely.
A multimeter measures voltage, current, and resistance, and can test continuity and diodes for quick circuit checks.
Digital vs analog meters: how do they differ in appearance and use?
Digital meters show numeric readings on a screen, while analog meters use a moving needle on a scale. Digital units are generally easier to read and have auto range, whereas analog meters provide a quick sense of trends but may be harder to read precisely.
Digital meters display digits, analog meters have a needle; both measure the same things, but reading style differs.
What safety features should I look for in a multimeter?
Look for a clear safety rating such as CAT I, CAT II, or CAT III, robust fuses on current ranges, proper insulation on leads, and a sturdy case. These features protect you and the meter during electrical measurements.
Check the safety rating, fuses, insulation, and rugged casing before using a meter.
Can I use any test leads with any multimeter?
Most meters use standard banana plug leads, but ensure the leads are rated for the meter and the intended measurements. Some meters require different connector configurations for high current or high voltage tasks.
Use standard banana leads compatible with your meter’s jacks and rating.
How often should a multimeter be calibrated or verified?
Calibration is ideally done by a professional for high-precision work. For hobby use, periodic checks using known references and ensuring fuses are intact is usually sufficient to maintain reasonable accuracy.
Have the meter checked professionally if you need high accuracy; for regular use, occasional checks help keep readings trustworthy.
Is a cheap meter as good as an expensive one for basic tasks?
For basic voltage checks and simple continuity, a budget meter from a reputable brand can be adequate. For critical diagnostics or high safety requirements, invest in a meter with good safety ratings, reliable fuses, and a clear display.
A cheap meter can work for basic tasks, but pick a model with solid safety and readable display for better reliability.
Key Takeaways
- Identify exterior parts such as the display, dial, and input jacks
- Understand the main form factors including handheld digital and analog meters
- Check safety ratings and test leads before use
- Know the difference between digital and analog meters by appearance
- Explore common accessories that accompany a meter for practical use
- Perform simple preuse checks for safety and accuracy
