What is a True RMS Multimeter? A Practical Guide
Learn what a true RMS multimeter is, how it differs from standard meters, and when to use it. A practical guide for DIYers and technicians.
true rms multimeter is a type of digital multimeter that measures true RMS voltage and current, allowing accurate readings of AC signals with non-sinusoidal waveforms.

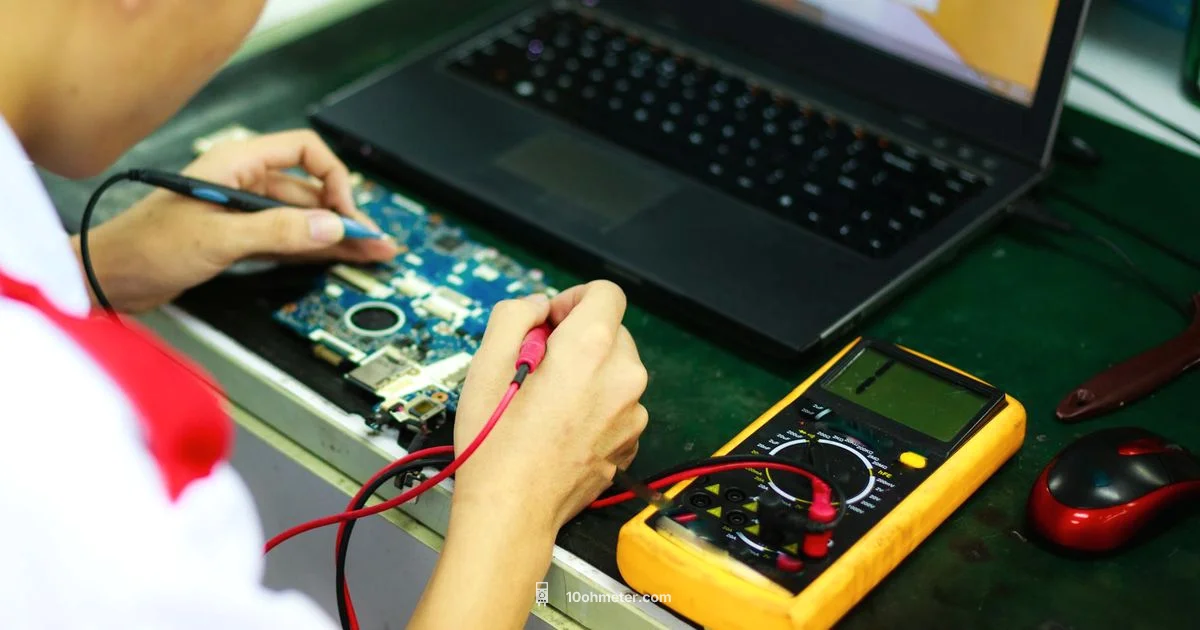

What is a true RMS multimeter and how does it work?
A true RMS multimeter is a digital instrument designed to measure the root mean square value of an alternating current or voltage. Unlike meters that assume every waveform is a clean sine wave, a true RMS meter captures samples of the waveform and computes the actual RMS value. This means readings reflect the heating effect of the signal rather than just its peak or average value. For practical purposes, true RMS enables accurate measurements on modern electronic devices that produce distorted or non sinusoidal waveforms—such as switching power supplies, PWM controlled motors, and battery chargers. In daily use, you’ll notice the meter giving consistent results across a variety of loads and waveforms, which translates to greater confidence during diagnostics and testing.
Understanding RMS helps you interpret readings correctly. RMS stands for root mean square and is a mathematical way to express the effective value of an AC signal. When a meter is true RMS capable, it uses internal sampling to calculate this effective value, then displays it alongside DC measurements and sometimes a frequency readout. This combination makes the true RMS multimeter a versatile tool for electronics and automotive work where signals rarely stay perfectly sinusoidal.
Practical takeaway: If you work with non sinusoidal loads or switching circuitry, a true RMS meter reduces the guesswork and improves measurement reliability.
Why true RMS readings matter
True RMS measurements matter whenever your signal deviates from a clean sine wave. Modern electronics, from LED drivers to electric vehicle components, produce complex waveforms that include harmonics and clipped segments. A meter that only estimates RMS based on a sine assumption will misreport voltage or current, potentially masking dangerous conditions or leading to incorrect component choices. For hobbyists and professionals, this accuracy translates into safer testing, better troubleshooting, and more dependable data for debugging circuits. In automotive contexts, alternators and electronic control units often create non linear loads; using a true RMS meter helps you diagnose faults without chasing phantom readings caused by waveform distortion. In essence, true RMS readings provide a truer picture of how an electrical system behaves under real operating conditions.
Key specifications to look for when buying
When evaluating a true RMS multimeter, focus on practical specs that affect everyday use. First, confirm that RMS capability is clearly stated for both AC voltage and AC current measurements. A broad frequency range supports varied signals without misreading, while a high resolution display helps in reading small variances. Auto ranging can simplify mode selection, but manual ranges give you control in sensitive measurements. Check safety features such as input protection, fuse quality, and CAT ratings to ensure the meter can handle common environments in electronics work and automotive testing. A low input impedance can skew readings in high impedance circuits, so look for meters designed to minimize loading effects. Finally, consider battery life, build quality, and how the device handles continuity tests and diode checks, as these are frequent tasks in diagnostics.
Different models balance features and price differently. Entry level devices often focus on essential RMS functionality and basic safety, while mid range options add more range flexibility, better displays, and broader test modes. Professional grade meters emphasize rugged construction, faster sampling, and extended warranty support. Your choice should align with your expected workloads and the environments you work in.
Your Questions Answered
What is the benefit of true RMS readings in measurements?
True RMS readings provide accuracy for non sinusoidal signals, such as those from switching power supplies and motor controllers. This reduces guesswork and helps you troubleshoot more reliably.
True RMS readings give you accurate measurements for non sinusoidal signals, like switching power supplies, so you can troubleshoot more reliably.
Do I need a true RMS meter for automotive electrical work?
If you work with modern automotive electronics that use pulsed power and variable loads, a true RMS meter is very helpful. For simple DC circuits, a basic meter may be sufficient, but true RMS still adds safety and accuracy in many scenarios.
If you work with modern car electronics, a true RMS meter is very useful. For simple DC tests, a basic meter might suffice.
Do all multimeters measure RMS?
Not all meters measure RMS. Many older or budget meters use average responding measurement which assumes sine waves. True RMS meters provide accurate readings for a wider range of signal shapes.
Not all meters measure RMS. Some only assume sine waves, while true RMS meters work with many waveform shapes.
Is true RMS necessary for audio work?
For general audio work, RMS readings are not typically essential for sound quality, but RMS measurements can be helpful when assessing power delivery and circuit health in audio equipment and amplifiers.
In most audio work you don’t need RMS specifically, but it can help you assess power delivery in gear.
How can I verify whether my meter is true RMS?
Check the product specifications and the user manual for RMS capability. You can also test with known non sinusoidal signals and compare against a reference meter to confirm accuracy.
Check the specs and test with a non sinusoidal signal to confirm it is true RMS.
Are there safety risks when using a true RMS meter?
As with any measurement tool, follow safety guidelines. Use correct CAT ratings, proper probes, and avoid measuring live high energy circuits beyond the meter’s limits.
Yes, follow safety guidelines and use proper probes and ratings when measuring live circuits.
Key Takeaways
RMS basics for quick recall
- True RMS meters compute actual RMS values for non sinusoidal signals.
- They improve accuracy for switching electronics and motor control.
- Look for clear RMS specifications for AC voltage and current.
- Safety ratings and durable construction matter for field work.
- Budget models cover basics; premium meters add rugged features.
Power and signal considerations
- Non sinusoidal waveforms require RMS precision to avoid misreading power usage.
- High crest factors may demand better meters and probes.
