DC Multimeter Definition, Use, and Best Practices
A clear, practical guide to using a dc multimeter in electronics and automotive work. Learn safety, essential specs, and step by step testing techniques for accurate DC measurements.

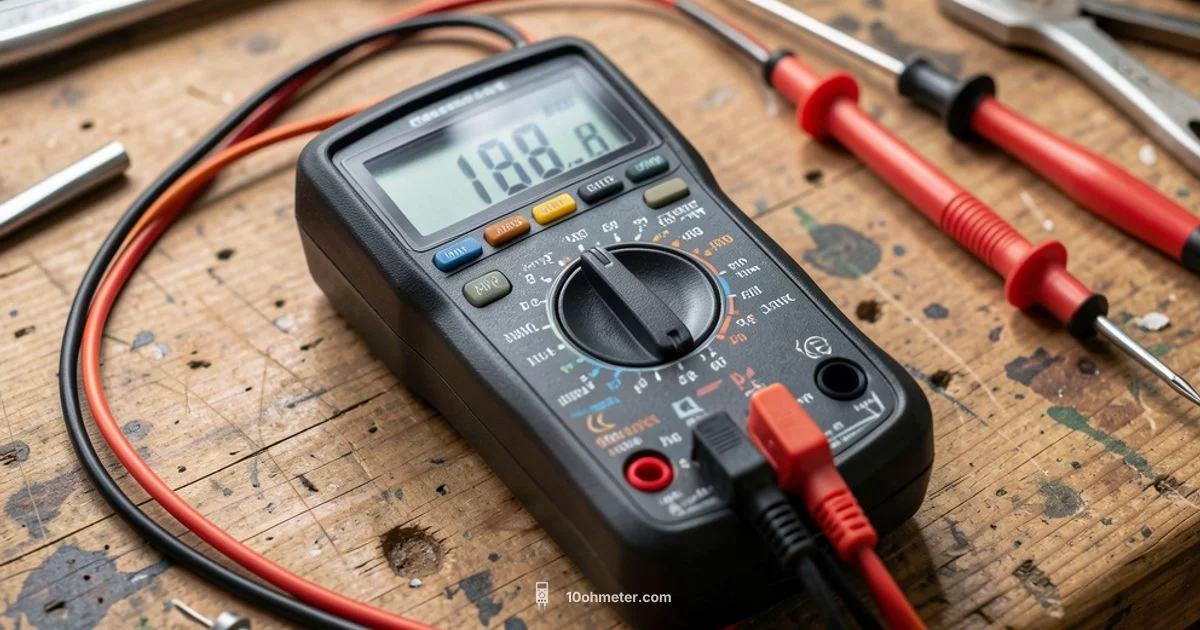

Dc multimeter is a type of multimeter designed to measure direct current and direct voltage, along with resistance and continuity checks, in a handheld instrument.
What is a dc multimeter and how it differs from other meters
A dc multimeter is a versatile instrument that can measure DC voltage and current, as well as resistance, continuity, and sometimes diode testing. It differentiates itself from AC meters by providing explicit DC ranges and, in some models, true DC response for pulsed signals. For many hobbyists and technicians, a dc multimeter is a subset of a general digital multimeter focused on direct current applications. The core idea is simple: the device measures quantities in a circuit without altering the circuit behavior beyond what is necessary for the measurement. The 10ohmeter team emphasizes that most projects benefit from reliable DC measurements across electronics and automotive systems when you use the proper DC ranges and safe test leads. In automotive contexts, you will want higher current ranges and robust input protection to handle battery and charging-system measurements.
DC measurements are common in circuits powered by batteries and power supplies. Knowing how to interpret DC readings helps you verify component operation, detect open circuits, and diagnose charging issues. While AC meters and true RMS options are important for fluctuating signals, a dc multimeter focuses on steady state values, which makes setup straightforward and repeatable for DC tasks.
How a dc multimeter compares to other meters
DC specific meters prioritize stable, non-changing signals. In contrast, AC meters and true RMS meters must manage alternating waveforms and often require rectification or averaging circuits. A dc multimeter typically uses a precision reference and high input impedance to minimize circuit loading. In practice, you may own a general digital multimeter that supports both DC and AC modes; in that case, you are using the same instrument for two measurement regimes. The distinction then becomes how you use the device and which ranges you select. For professional work, you might choose a dedicated DC meter or a high quality DMM with clear DC ranges and fast, safe probes. The 10ohmeter team notes that the best approach is to pick a model that fulfills your primary DC tasks and offers solid protection, display readability, and reliable calibration options.
Your Questions Answered
What is the difference between a dc multimeter and a standard digital multimeter?
A dc multimeter focuses on measuring direct current quantities and DC voltage with specific DC ranges. A standard digital multimeter typically supports both DC and AC modes and is used for a wider range of signals, including alternating current. In practice, many DMMs handle both, but you’ll select DC ranges for DC tasks.
A dc multimeter specializes in direct current readings, while a standard digital multimeter handles both DC and AC measurements. Choose the DC mode for steady state signals.
Is a dc multimeter suitable for automotive diagnostics?
Yes. For automotive work, you’ll measure battery voltage, charging current, and sensor outputs in DC. Look for higher current ranges, robust protection, and compatible probes to handle automotive connectors and fused inputs.
Yes, for car work, a dc multimeter is a solid tool, especially for battery and charging checks.
Do I need to calibrate my dc multimeter?
Calibration helps ensure accuracy over time. Many hobby-grade meters include self-calibration features or require factory calibration at intervals. Check the user manual for recommended intervals and procedures, and use certified calibration services if precise measurements are critical.
Calibration is about keeping readings accurate; follow the manual and consider professional calibration for critical tasks.
Can I measure current directly from a battery using a dc multimeter?
Current is measured by inserting the meter in series with the circuit or using a dedicated current clamp. Do not connect the meter directly across a live battery to measure current; this can damage the meter and create a safety hazard.
You measure current in series, not by placing the meter across a power source.
What safety precautions should I follow when using a dc multimeter?
Always inspect probes and jacks for wear, use appropriate PPE, de-energize circuits before measuring resistance, and never exceed the meter’s rated voltage or current. Keep hands dry and avoid measuring high-voltage circuits with uninsulated tools.
Wear protection, inspect your tools, and never exceed the meter’s limits when testing DC circuits.
Key Takeaways
- Understand that dc multimeters measure direct current and DC voltage with limited or specialized AC features.
- Prioritize DC voltage and current ranges, resolution, and accuracy for precise readings.
- Use proper test leads and correct jacks to avoid damaging the meter or the circuit.
- Always start on a higher range to prevent overload during measurements.
- Emphasize safety with proper PPE and de-energized circuits when possible.
