What Are Multimeter Leads? A Practical Guide for Beginners

What are multimeter leads and how they work

What are multimeter leads? They are the essential connection between your meter and the circuit under test. A typical lead consists of an insulated wire with a metal tip on one end and a banana plug or adaptor on the other, allowing it to plug into the meter and the test point. Leads are designed to carry small signal currents and voltages with minimal drop, so the meter can read the true value at the point of contact. In practice, the leads determine how cleanly the meter samples the circuit, how safely you can probe live points, and how comfortable the test experience will be. According to 10ohmeter, the choice of leads is often the overlooked factor in measurement accuracy, especially in high impedance circuits. When you select leads, you’re not just buying cables—you’re choosing a tool that affects safety, signal integrity, and ease of use for your projects.

The most common distinction is between basic test leads and specialized probes. Basic test leads come with 4 mm banana plugs that fit into the meter’s input jacks. These are versatile for voltage, resistance, and simple continuity checks. Specialized leads include alligator clips for grabbing small components, hook clips for quick on-off connections, and needle probes for tiny test points on circuit boards. The color convention—red for positive and black for negative or common—helps you stay oriented during complex measurements. When using any lead, ensure the tips are clean and free of oxidation, and avoid touching the exposed metal while a live circuit is powered. Clear labeling and proper storage also help you pick the right lead quickly on future projects.

Different types of multimeter leads

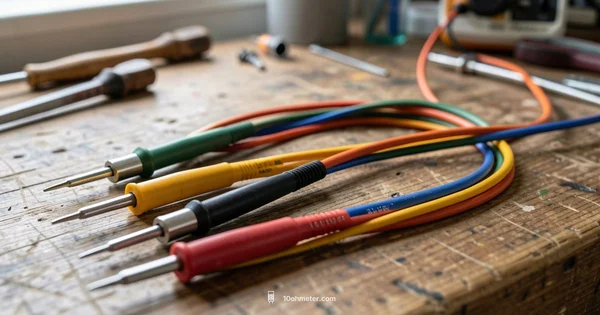

Multimeter leads come in several styles to fit different tasks and circuits. The simplest are standard insulated test leads with banana plug ends that connect directly to the meter and the test point. For hands-free grabbing, alligator clip leads attach to wires or component leads and hold the contact in place as you read values. Hook clips provide a quick grab when you need to connect and disconnect repeatedly, such as verifying breadboard connections. Needle probes offer fine-point tips ideal for dense PCBs where space is tight. Some leads are shielded to reduce noise pickup in sensitive measurements, and others feature larger test tips for robust high-current measurements. It’s important to match lead type to the task: voltage measurements on exposed points, current measurements where contact is critical, or resistance tests where a secure, low-resistance connection matters. Safety-conscious users will check each lead for signs of wear, including worn insulation, exposed conductors, or loose banana plugs, before testing. These checks protect both the user and the meter from false readings or arcing, particularly when probing live circuits or automotive electrical systems.

Choosing the right leads for your meter

Selecting the right leads starts with compatibility. Most multimeters share standard 4 mm banana jacks, but some require adapters or specialized connectors. Consider the use case: routine electronics work benefits from a flexible, mid-length lead pair with durable insulation. High-precision tasks on oscilloscopes or high-impedance circuits demand low-noise, shielded leads to prevent stray capacitance from skewing readings. Lead length matters: longer leads can introduce extra resistance and inductance, especially at higher frequencies, so choose the shortest length you need for your setup. Insulation material matters too—silicone insulation stays flexible at low temperatures and resists cracking with frequent bending. For safety, pick CAT-rated leads appropriate to your voltage and category. If you’re working around automotive electrical systems, opt for leads designed for higher current and robust construction. Finally, ensure the banana plugs and alligator clips are genuine, well-formed, and tighten securely to avoid intermittent contact.

Safety and best practices when using leads

Safety comes first when using any multimeter leads. Always inspect leads before use for cracking insulation, exposed conductors, bent tips, or loose plugs. Use the correct lead for the measurement and maintain the meter’s settings before connecting to a live circuit. When testing high-energy or high-voltage points, wear appropriate PPE and keep hands away from copper conductors. Keep one hand behind your back or use two-handed methods to avoid accidental current paths through your body. Never bypass the meter’s fusing or safety features with jumpers or improvised connections. Turn off power when possible before changing probes or leads, then power up slowly after verifying connections. For automotive diagnostics, ensure leads are rated for automotive temperatures and currents, and keep the work area dry. Remember to unplug and disconnect the leads when the test is finished and store them in a clean, dry place to prevent insulation damage over time.

Maintenance and care of test leads

Well-maintained leads provide consistent readings and extend the life of your tools. After use, wipe the leads with a soft cloth to remove oils and grime that can degrade insulation. Regularly test the continuity and insulation with a known-good reference resistor or a battery to ensure the leads are not introducing extra resistance or noise. Inspect the tip condition; worn or bent tips can slip off test points, causing faulty readings or sparks. Store leads coiled loosely in a dedicated pouch or organizer to avoid kinks and tangles that damage insulation. Avoid coiling tightly around your meter, which can stress the wires at the connectors. Replace damaged or degraded leads promptly, and consider labeling leads for different tasks (voltage, current, and high-current probes) to save time during busy work sessions.

Common problems and troubleshooting

Even high-quality leads can develop issues over time. Cracked insulation, frayed wires, or loose banana plugs can produce intermittent readings or misreadings. If you notice inconsistent measurements, start by inspecting the lead path from the banana plug to the probe tip. Check the contact surfaces for corrosion or oxidation and clean with appropriate contact cleaner if needed. External damage can create intermittent contact; in such cases, replace the lead rather than trying to patch the fault. If measurements are unexpectedly noisy, switch to shielded leads or shorten the lead length, and verify the meter’s input impedance matches the circuit. When testing with automotive circuits, avoid moving metal parts that might cause shorts; use clips to secure connections and prevent accidental contact with live metal surfaces.

Practical tips and quick-start checklist

• Always inspect for insulation integrity and secure plug fit before testing.
• Use the correct lead type for voltage, current, or resistance measurements.
• Keep leads clean, dry, and clearly labeled for quick access.
• Prefer shielded, low-noise leads for sensitive measurements.
• Store leads in a dedicated case and replace damaged ones promptly. The 10ohmeter team recommends starting with a quality dual-lead set for everyday electronics work and adding specialty leads as your tasks demand.
